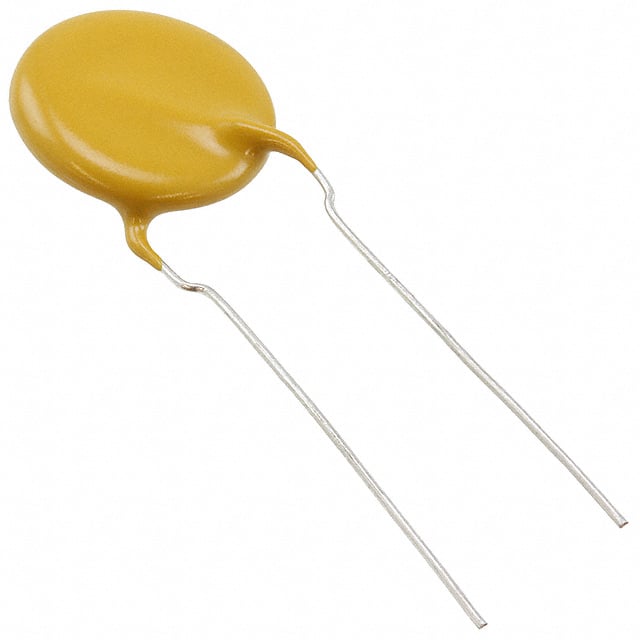

The Vishay Dale S103M69Z5UP63K7R is a general-purpose ceramic disc capacitor from the S Series. It offers a capacitance of 10000 pF with a tolerance of ±20% and is rated for 2000V (2kV) DC.
This capacitor utilizes Z5U temperature characteristics, operating within a range of -30°C to +125°C. The component is designed for through-hole mounting with a lead spacing of 7.50mm and features kinked leads.
The construction involves a silver-plated ceramic disc with tinned copper wire leads. The coating is made of epoxy resin in accordance with UL 94 V-0. The datasheet indicates a capacitance range of 10 pF to 33 nF and rated voltages of 1000V, 2000V, 3000V, and 6000V DC. The dissipation factor for Class 2 is a maximum of 2.5% at 1kHz, 1V.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 10000 pF.
The voltage rating is 2000V (2kV).
The temperature characteristics are Z5U.
The tolerance is ±20%.
It is a through-hole mounted capacitor.
The lead spacing is 7.50mm.
The operating temperature range is -30°C to +125°C.
