| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Industrial Grade | |
| Ingress Protection | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Orientation | |
| Rated Current | |
| Rated Voltage | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination Style | |
| Type |

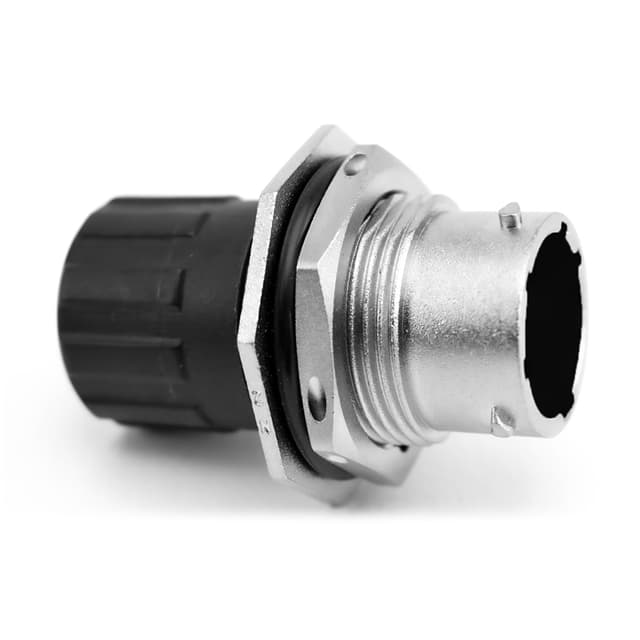

The RT072028PNHEC is a circular connector housing from Amphenol Sine Systems' EcoMate Aquarius series. It is a jam nut receptacle designed for male pins, offering 28 positions in a size 20-28 shell. The housing is constructed with a zinc alloy shell finished in nickel, providing a silver appearance and shielding capability.
Electrical ratings include a maximum current of 3A and a rated voltage of 500V AC/DC. The dielectric withstanding voltage is 2000V AC with less than 2mA leakage, and insulation resistance is 5000 MΩ minimum. The operating temperature range is -40°C to 105°C. It is rated IP67 for dust and water ingress protection.
The housing features a bayonet lock fastening system and panel mount with bulkhead front side nut. It accepts 16 AWG contacts (wire range 14-24 AWG) with crimp termination. The housing is shielded and includes a backshell (noted as end cap in datasheet). It is RoHS compliant and has a UL94 V-0 flammability rating for the thermoplastic insert.
This connector housing is suitable for industrial, automotive, and harsh environment applications requiring reliable connections with environmental sealing. The 500 mating cycle durability ensures long-term performance.
| Qty | Low | High |
|---|---|---|
| 100+ | $26.57 | $26.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
28 positions.
3 A maximum.
500 V AC/DC.
Panel mount with bulkhead front side nut.
IP67, dust tight and waterproof.
-40°C to 105°C.
14-24 AWG.
