| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Housing Color | |
| Ingress Protection | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Rated Current | |
| Rated Voltage | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Thread Size | |
| Type |

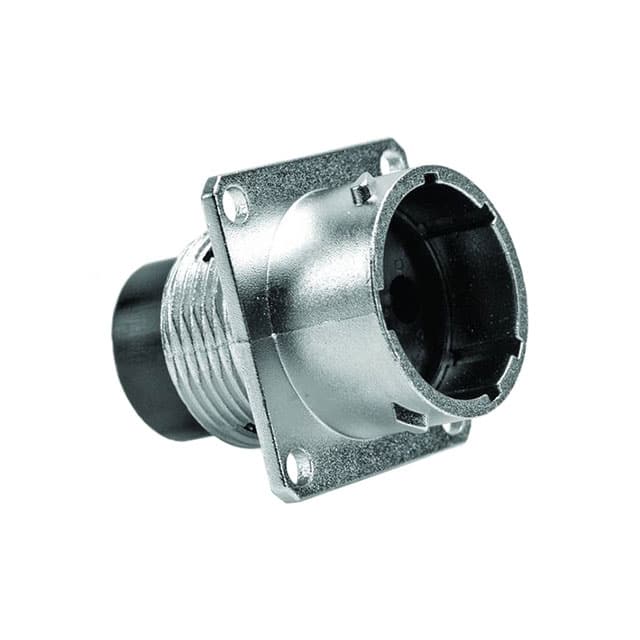

The RT00144PNH from Amphenol Sine Systems is a 4-position receptacle housing for male pins, part of the Eco-Mate series. The housing features a panel mount design with a bayonet locking mechanism and a flange for secure mounting. The shell is made of zinc alloy with a nickel finish, providing durability and shielding. The insert is made of thermoplastic rated UL94 V-0.
Electrical ratings include a maximum current of 23A and a nominal voltage of 350V AC/DC. The dielectric withstand voltage is 2000V AC with leakage current less than 2mA, and insulation resistance is 5000 MΩ minimum. The housing is rated IP67 for dust and water ingress protection, making it suitable for harsh environments. Operating temperature range is -40°C to +105°C.
The housing accepts 2.5mm crimp contacts (not included) and is rated for a minimum of 500 mating cycles. The shell size is 14-4 with a 13/16-20 UNEF thread. The keying position is N (normal). The housing is RoHS compliant and shielded.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.39 | $13.39 |
| 10+ | $11.39 | $11.39 |
| 25+ | $10.67 | $10.67 |
| 50+ | $10.15 | $10.15 |
| 100+ | $9.67 | $9.67 |
| 250+ | $9.06 | $9.06 |
| 500+ | $8.63 | $8.63 |
| 1,000+ | $8.07 | $8.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
23A max.
350V AC/DC.
Panel mount with flange.
IP67 - dust tight and waterproof.
Zinc alloy with nickel plating.
-40°C to +105°C.
