| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

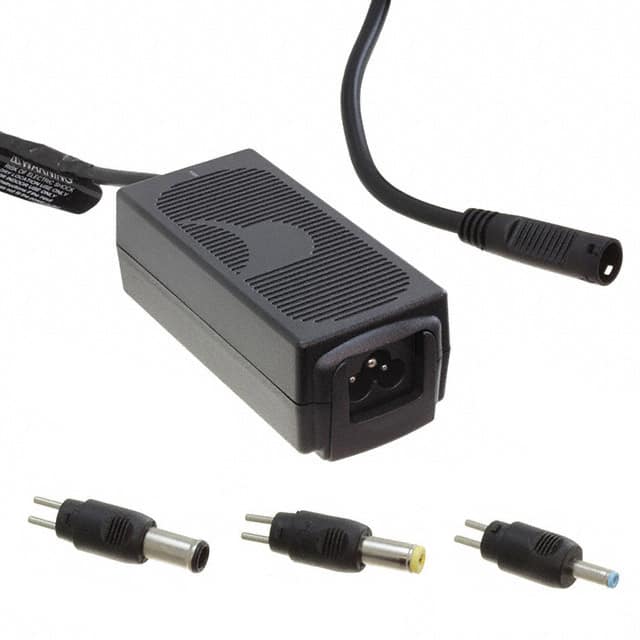

This AC/DC external power supply from GlobTek, model RR9LA4500T00-IMR6B, is suitable for both desktop and wall-mounted applications, classified as Class I.
It operates with an input voltage range of 100-240 VAC at 50-60 Hz, providing a stable regulated output of 5V at a maximum current of 4.5A, for a total power output of 22.5W. The unit meets Efficiency Level VI standards and is designed for international use.
The power supply features an IEC 320-C6 input connector and comes with a multi-blade option sold separately. The output is configurable via a barrel plug kit, supporting various common sizes including 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm. Its dimensions are 101.7mm x 46.5mm x 38.2mm.
Applications include Household Appliances, ITE (Commercial), and Medical equipment. It is approved by multiple agencies including CB, CCC, CE, cETLus, EAC, and others, indicating compliance with various international safety and performance standards.
The RR9LA4500T00-IMR6B provides an output voltage of 5V at a maximum current of 4.5A.
This power supply has a power rating of 22.5W.
The RR9LA4500T00-IMR6B meets Efficiency Level VI.
The dimensions of the RR9LA4500T00-IMR6B are 101.7mm in length, 46.5mm in width, and 38.2mm in height.
The operating temperature range for the RR9LA4500T00-IMR6B is -20°C to 40°C.
The RR9LA4500T00-IMR6B uses an IEC 320-C6 input connector, with multi-blade options sold separately.
The RR9LA4500T00-IMR6B supports a barrel plug kit with common sizes including 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm.
