| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

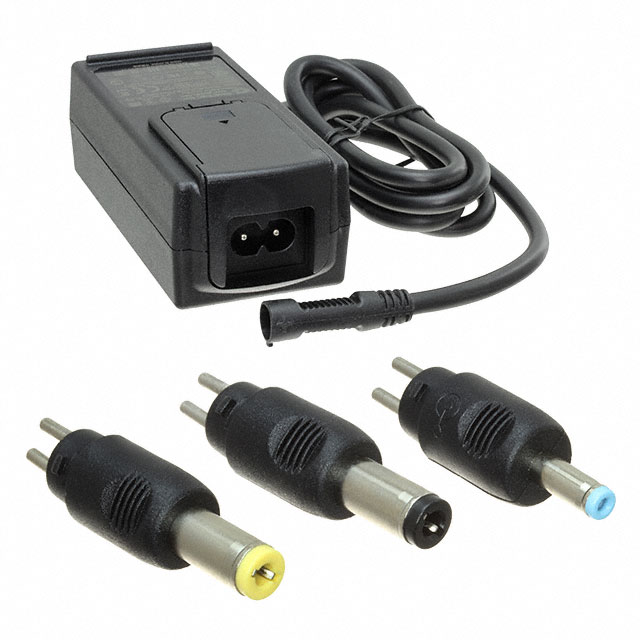

This AC/DC external adapter from GlobTek, Inc., model RR9KZ3157T00CIMR6B, is designed for desktop and wall mount applications, featuring a Class II enclosure. It provides a stable 19V output with a maximum current of 3.157A, delivering a total power of 60W. The adapter operates within a wide input voltage range of 90-264 VAC and adheres to Level VI efficiency standards, ensuring optimal energy consumption.
Key technical specifications include a low no-load power consumption of 150mW (Max) and an operating temperature range of -20°C to 40°C. The unit measures 117.5mm x 53.5mm x 36.6mm and comes with a cord length of 1.20m. Input connection is via IEC 320-C8 or a multi-blade connector (sold separately), with output options including a barrel plug kit supporting multiple common sizes.
Designed for versatility, the RR9KZ3157T00CIMR6B is suitable for applications in household appliances, ITE (Commercial), and Medical fields. It has received numerous agency approvals, including BSMI, CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, UKRSepro, UL, and VCCI, indicating compliance with international safety and performance standards. The adapter is supplied in bulk packaging.
The RR9KZ3157T00CIMR6B adapter has an output voltage of 19V and a maximum output current of 3.157A.
The power rating for the RR9KZ3157T00CIMR6B adapter is 60W.
The input voltage range for the RR9KZ3157T00CIMR6B adapter is 90 to 264 VAC.
The operating temperature range for this adapter is -20°C to 40°C.
The dimensions of the adapter are 117.5mm x 53.5mm x 36.6mm.
The adapter meets Level VI efficiency standards.
