| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

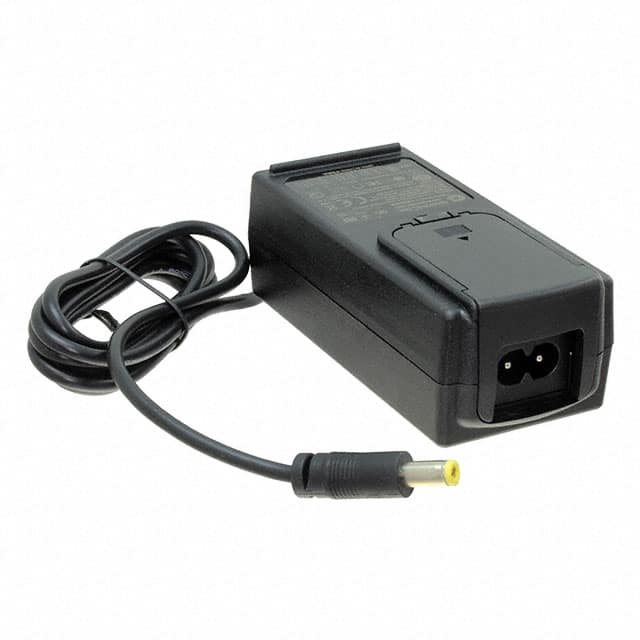

The GlobTek, Inc. RR9KG2400CCPCIMR6B is an AC/DC desktop and wall mount adapter with a power output of 36W. It delivers a stable 15V at 2.4A, making it suitable for various applications.
This adapter features an IEC 320-C8 input connector and a barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. It is designed for international use and complies with efficiency standard Level VI, ensuring energy savings.
Key specifications include a wide operating temperature range of -20°C to 40°C and a low no-load power consumption of 75mW maximum. The unit has dimensions of 101.7mm x 46.5mm x 38.2mm and includes a 1.50m cord.
It holds numerous agency approvals, including CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, and VCCI, indicating its suitability for commercial, medical, and household appliance applications.
The output voltage is 15V and the current is 2.4A.
The output power is 36W.
It uses a barrel plug with 2.1mm I.D. x 5.5mm O.D. and positive center polarity.
The efficiency level is Level VI.
The operating temperature range is -20°C to 40°C.
It has approvals: CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, and VCCI.
Dimensions are 101.7mm x 46.5mm x 38.2mm.
