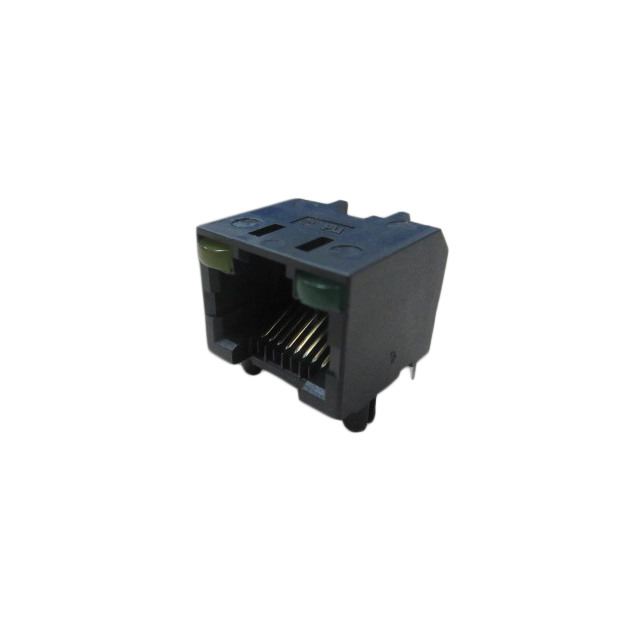

RJHSE5085A1 RJHSE5085A1 is a 1-port RJ45 modular jack with 8P8C configuration, right-angle orientation, through-hole mounting, and unshielded design. It features gold-plated phosphor bronze contacts and a board lock.
Mfr Part #:

RJHSE5085A1

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
RJHSE5085A1 is a 1-port RJ45 modular jack with 8P8C configuration, right-angle orientation, through-hole mounting, and unshielded design. It features gold-plated phosphor bronze contacts and a board lock.
✓ Total Stock: 2,187 pcs
$ Price Range: $0.83

RJHSE5085A1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
2,187 pcs
On Request
2187 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RJHSE5085A1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Shielding
Tab Direction
Tape & Reel
Termination
Termination Style
View Similar Products (0)

RJHSE5085A1 Description

Short technical summary and product information.

The RJHSE5085A1 from Amphenol ICC is a single-port modular jack designed for RJ45 (8P8C) Ethernet connections. It features a right-angle (90°) orientation and through-hole solder termination for secure PCB mounting. The connector is unshielded and includes a board lock feature for additional mechanical retention.



The contacts are made of phosphor bronze with a gold finish, ensuring reliable electrical performance and corrosion resistance. The tab direction is up, and the jack includes dual green LED indicators. This component is suitable for networking equipment and data communication applications where a compact, cost-effective unshielded RJ45 interface is required.

RJHSE5085A1 Quick Information

Product Type: Modular Connector Jack
Series: RJHSE
Canonical Name: RJHSE5085A1 Modular Jack, 8p8c (RJ45, Ethernet), 1 Port, Right Angle, Through Hole, Unshielded
Subcategory: RJ45 Jack

RJHSE5085A1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RJHSE5085A1 Estimated Pricing

Qty Low High
2,916+ $0.83 $0.83

Estimated market price range - modelled values for guidance only, not live distributor offers.

RJHSE5085A1 Features

  • Single port RJ45 8P8C modular jack.
  • Right-angle orientation for space-saving PCB layout.
  • Unshielded design with board lock feature.
  • Gold-plated phosphor bronze contacts.
  • Dual green LED indicators.

RJHSE5085A1 Applications

  • Ethernet networking equipment and switches.
  • Routers and network interface cards.
  • Industrial control and automation panels.
  • Data communication and telecommunication devices.

RJHSE5085A1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the connector type of the RJHSE5085A1?

It is a modular jack (RJ45) with 8P8C (8 position, 8 contact) configuration.

How many ports does the RJHSE5085A1 have?

It has 1 port.

What is the mounting type of this connector?

It is a through-hole mount connector with solder termination.

Is the RJHSE5085A1 shielded?

No, it is unshielded.

What is the contact finish and material?

The contacts are gold-plated phosphor bronze.

Does the RJHSE5085A1 have any LED indicators?

Yes, it has dual green LEDs.
