| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Termination Style |

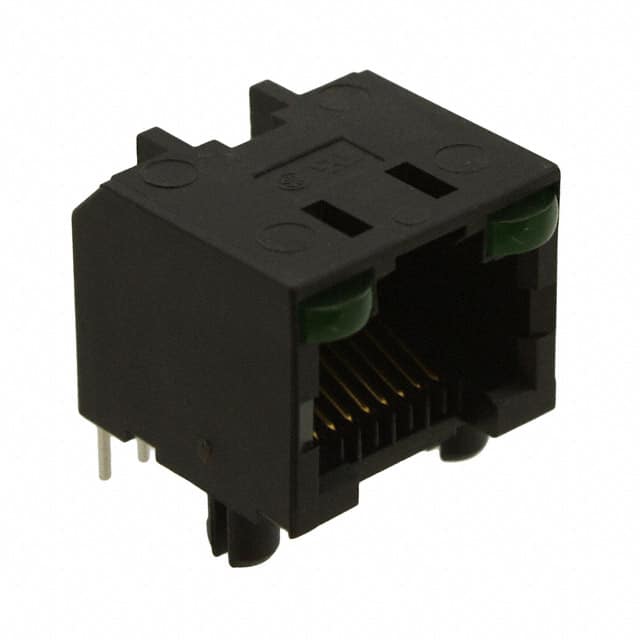

The RJHSE-5085 from Amphenol ICC is a single-port 8p8c (RJ45) modular connector jack designed for Ethernet applications. It features a right angle (90°) orientation for through hole mounting, making it suitable for compact PCB layouts. The connector is unshielded and includes a board lock for secure attachment to the PCB.
Contacts are made of phosphor bronze with a gold finish, ensuring reliable electrical connections. The jack includes two green LEDs for status indication. The tab direction is up, and the connector has a single row of 8 positions.
This modular jack is commonly used in networking equipment such as routers, switches, and network interface cards where space-saving right-angle connectors are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.55 | $1.55 |
| 10+ | $1.35 | $1.35 |
| 25+ | $1.16 | $1.16 |
| 100+ | $1.11 | $1.11 |
| 250+ | $1.05 | $1.05 |
| 500+ | $0.98 | $0.98 |
| 1,000+ | $0.94 | $0.94 |
| 2,916+ | $0.88 | $0.88 |
| 5,832+ | $0.81 | $0.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions (8p8c) for RJ45 Ethernet.
Through hole mounting.
90° angle (right angle).
No, it is unshielded.
Green - green (two LEDs, both green).
Phosphor bronze contacts with gold plating.
