| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,013 pcs
|
1013 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency Bands (Low | |
| High Band Attenuation (min | |
| Impedance | |
| Mounting Type | |
| Return Loss (Low Band | |
| Termination Style | |
| Type |

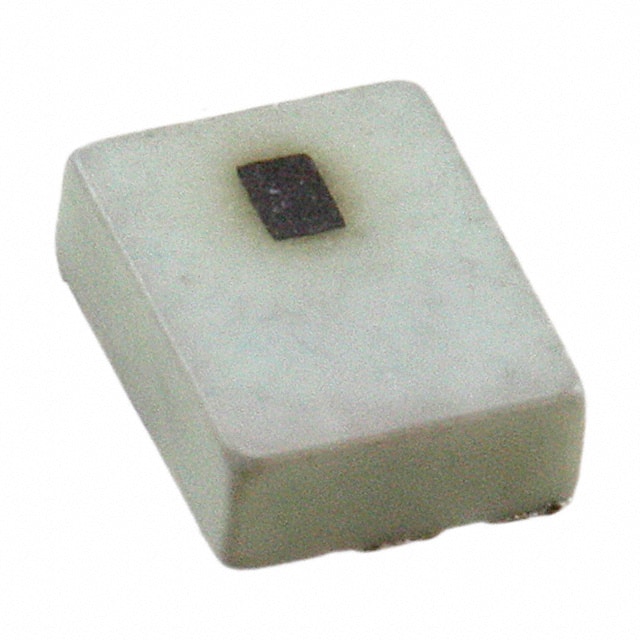

This RF Diplexer from Walsin Technology, part number RFDIP2520080TM0T62, is engineered for applications requiring signal separation or combination across distinct frequency ranges. It supports operations in the 1.565GHz to 1.585GHz band and the 2.4GHz to 2.5GHz band.
The component features a typical insertion loss of 0.7 dB and a maximum of 3.5 dB, ensuring minimal signal degradation. The return loss is specified at 10.0 dB for both low and high bands, indicating good impedance matching. With a high band attenuation of at least 30 dB, it effectively isolates signals.
The RFDIP2520080TM0T62 is designed for surface mounting, utilizing a 1008 (2520 Metric) package with 9 PC pads. Its termination style is SMD/SMT, and it is supplied on tape and reel for automated assembly processes. The impedance is rated at 50 Ohms.
This diplexer is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1. It is designated as REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency bands are 1.565GHz ~ 1.585GHz for the low band and 2.4GHz ~ 2.5GHz for the high band.
The typical insertion loss is 0.7 dB.
The return loss is 10.0 dB for both the low and high bands.
The package type is 1008 (2520 Metric) with 9 PC pads.
This component is designed for surface mounting.
