| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
175 pcs
|
175 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Resistance | |
| Coil Voltage | |
| Contact Material | |
| Contact Type | |
| Depth | |
| Height | |
| Operating Temperature | |
| Rated Voltage | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Width |

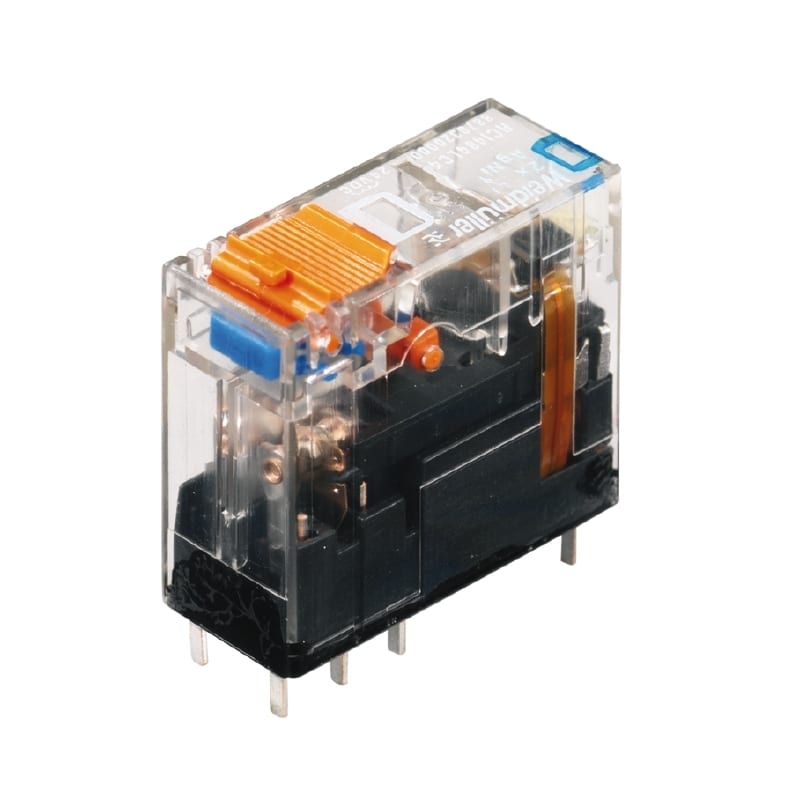

The Weidmüller RCI374R24 is a miniature industrial relay from the RIDERSERIES RCI. It is designed with a 24 VAC coil and offers a robust 16A continuous current carrying capacity.
This relay features one changeover contact with AgNi 90/10 material, suitable for various switching applications. It includes a convenient test button that can be locked and a red LED for integrated status indication, aiding in diagnostics and operation monitoring.
With a compact form factor measuring 13mm in width, 29mm in height, and 26.7mm in depth, the RCI374R24 is suitable for space-constrained applications. It operates within a temperature range of -40°C to 70°C and meets UL certification standards.
Key electrical specifications include a maximum switching voltage of 240 VAC, an AC breaking capacity of 4000 VA, and a DC breaking capacity of 384 W at 24 V. The relay also offers quick response times with an energize delay of ≤ 8 ms and a de-energize delay of ≤ 6 ms.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 24 VAC.
The continuous current rating is 16 A.
It has 1 changeover contact.
Yes, it has a test button that is lockable.
The operating temperature range is -40°C to 70°C.
The maximum switching voltage is 240 VAC.
The AC breaking capacity is 4000 VA.
