| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,314 pcs
|
3314 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | 20+21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |
The Renesas R5S77640N300BG is a 32-bit microcontroller based on the SH-4A core, designed for embedded applications. This device features a ROMless program memory type and a RAM size of 16KB.
With a core speed of 324MHz, the R5S77640N300BG offers significant processing power for demanding tasks. It operates within a voltage range of 1.15V to 1.35V and has a wide operating temperature range of -20°C to 75°C.

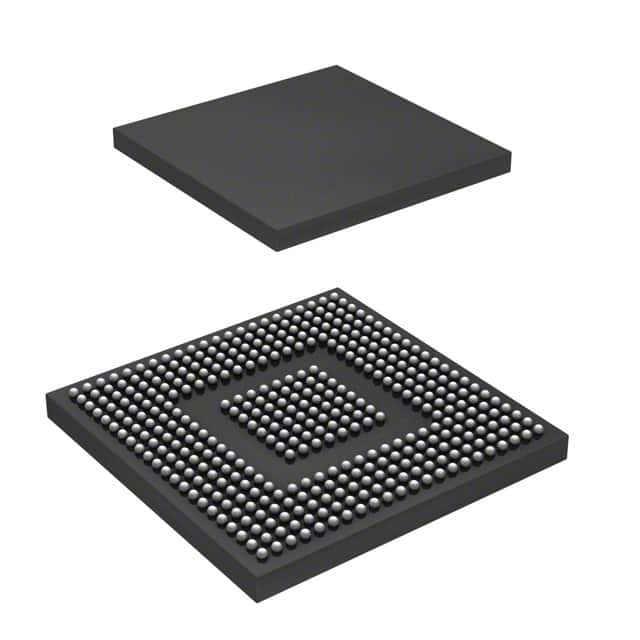

The microcontroller includes 77 I/O pins and supports various peripherals such as DMA, LCD, POR, and WDT. Connectivity options include ATAPI, Ethernet, I²C, SCI, SSI, and USB. The device is available in a 404-FBGA package and is designed for surface mounting.
Key specifications include a 32-bit single-core architecture and an external oscillator type. This makes it suitable for a range of embedded system designs requiring efficient processing and flexible connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is between 1.15V and 1.35V.
The operating temperature range is -20°C to 75°C.
It is available in a 404-FBGA package.
The RoHS status is ROHS3 Compliant.
