R5F572NNHGBD#20
Renesas

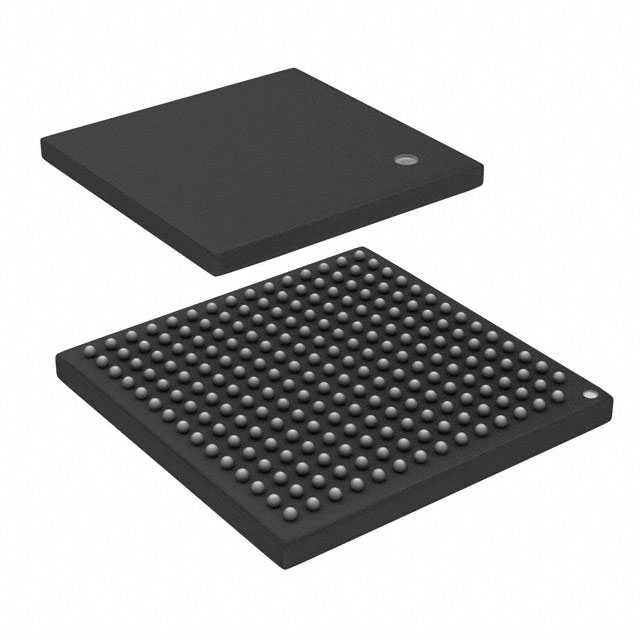

The R5F572NNHGBD#20 is a 32-bit microcontroller from Renesas featuring 4MB flash memory and a 224LFBGA package.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,321 pcs
|
6321 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |
The Renesas R5F572MNHGBD#20 is a high-performance 32-bit microcontroller based on the RXv3 core. It offers a substantial 4MB of Flash program memory and 1MB of RAM, making it suitable for complex embedded applications.
This microcontroller operates within a voltage range of 2.7V to 3.6V and supports a wide operating temperature range of -40°C to 105°C. It features a clock speed of up to 240MHz and includes various peripherals such as DMA, LCD, LVD, POR, PWM, and WDT.
Connectivity options include CANbus, EBI/EMI, Ethernet, I²C, MMC/SD, QSPI, SCI, SPI, SSI, and USB OTG, providing versatile communication capabilities. The device is packaged in a 224-LFBGA (13x13) format and is designed for surface mount installation.
Key specifications include 29x12-bit ADCs and 2x12-bit DACs for data conversion, along with 32K x 8 EEPROM. The R5F572MNHGBD#20 is a robust solution for demanding embedded designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is between 2.7V and 3.6V.
The operating temperature range is -40°C to 105°C (TA).
It has 4MB of FLASH program memory.
The R5F572MNHGBD#20 has 1MB of RAM.
The microcontroller operates at a speed of 240MHz.
It is supplied in a 224-LFBGA (13x13) package for surface mounting.
