| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,485 pcs
|
6485 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Number of I/O | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

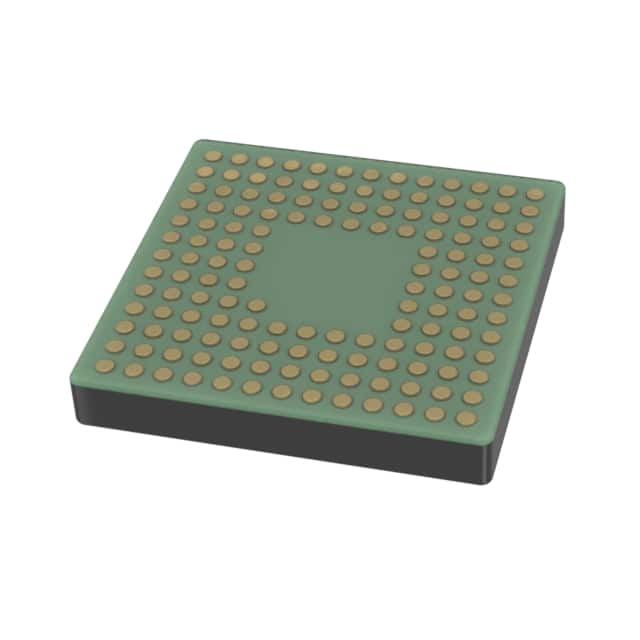

The Renesas R5F566NNHGLK#20 is a 32-bit microcontroller based on the RXv3 core, operating at a speed of 120MHz. It offers 4MB of FLASH program memory and 1M x 8 of RAM, along with 32K x 8 of EEPROM.
This microcontroller supports various connectivity options including CANbus, EBI/EMI, Ethernet, I2C, MMC/SD, QSPI, SCI, SPI, SSI, and USB OTG. It is equipped with peripherals such as DMA, LCD, LVD, POR, PWM, and WDT, and features 29x12-bit ADCs and 2x12-bit DACs.
The device operates within a voltage range of 2.7V to 3.6V and has an operating temperature range of -40°C to 105°C (TA). It comes in a 145-TFLGA (7x7) package and is designed for surface mounting.
Key specifications include 111 I/O lines, making it suitable for embedded applications requiring significant control and data processing capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 2.7V to 3.6V.
The operating temperature range is -40°C to 105°C (TA).
It is supplied in a 145-TFLGA (7x7) package.
It is RoHS3 Compliant.
