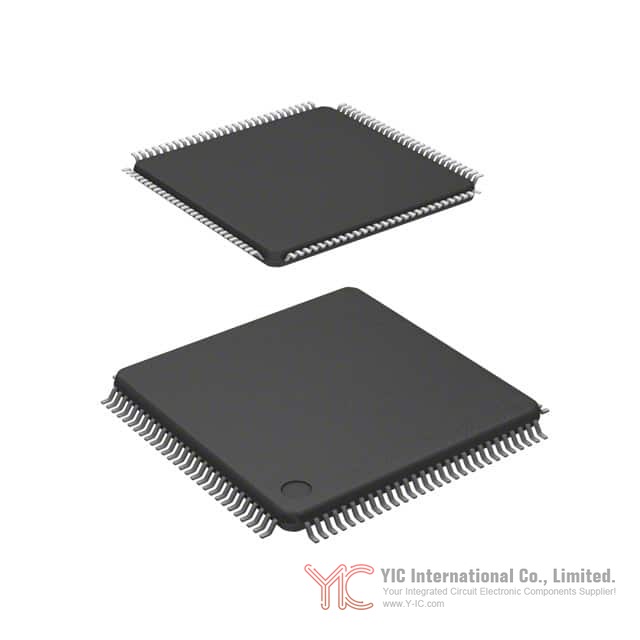

The Renesas R5F566NNHGFC#V0 is a high-performance 32-bit microcontroller designed for embedded applications. It features a substantial 4MB of FLASH program memory and 1MB of RAM, enabling complex code execution and data handling. The device operates at speeds up to 120MHz, powered by the RXv3 core.
Key electrical characteristics include a wide operating voltage range of 2.7V to 3.6V and integrated peripherals such as DMA, LCD, LVD, POR, PWM, and WDT. Connectivity options are extensive, supporting CANbus, Ethernet, I²C, MMC/SD, QSPI, SCI, SPI, SSI, and USB OTG.
This microcontroller is housed in a 176-lead LFQFP package, suitable for surface mounting. It operates within a temperature range of -40°C to 105°C (TA). The package dimensions are 24x24mm, providing a balance between component density and ease of assembly.
Additional features include 32K x 8 EEPROM size and data converters supporting A/D (29x12b) and D/A (2x12b) operations. The internal oscillator simplifies external component requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The R5F566NNHGFC#V0 has 4MB of FLASH program memory.
The operating voltage range is 2.7V to 3.6V.
The operating temperature range is -40°C to 105°C (TA).
It is supplied in a 176-LFQFP package.
The RAM size is 1MB.
The microcontroller operates at a speed of 120MHz.
