R5F566NDHDFC#30
Renesas

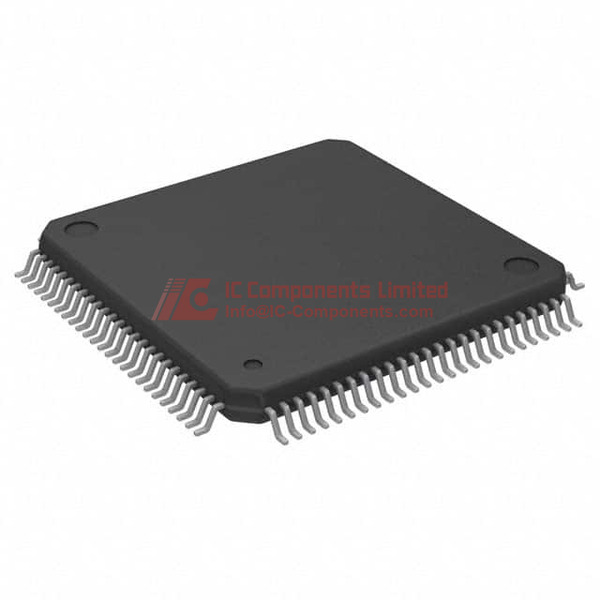

The R5F566NDHDFC#30 is a 32-bit microcontroller from Renesas featuring 2MB Flash memory and 136 I/O pins.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,741 pcs
|
1741 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |
This Renesas microcontroller, part number R5F566NDDDFC#30, is built around the RXv3 32-bit core, operating at a speed of 120MHz. It provides 2MB of FLASH program memory and 1MB of RAM, along with 32KB of EEPROM.
Key electrical specifications include a supply voltage range of 2.7V to 3.6V and 136 input/output pins. The microcontroller is equipped with peripherals such as DMA, LCD, LVD, POR, PWM, and WDT, and supports various data conversion capabilities with 29x12b A/D and 2x12b D/A converters.
Packaged in a 176-LFQFP (14x14mm) format, this device is designed for surface mounting. It operates within a temperature range of -40°C to 85°C (TA). Connectivity options include CANbus, EBI/EMI, Ethernet, I²C, MMC/SD, QSPI, SCI, SPI, SSI, and USB OTG.
The R5F566NDDDFC#30 is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 2.7V to 3.6V.
The operating temperature range is -40°C to 85°C (TA).
It is supplied in a 176-LFQFP (24x24) package.
The program memory size is 2MB (2M x 8).
The RAM size is 1M x 8.
The RoHS status is ROHS3 Compliant.
The MSL is 1 Unlimited.
