| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,120 pcs
|
5120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

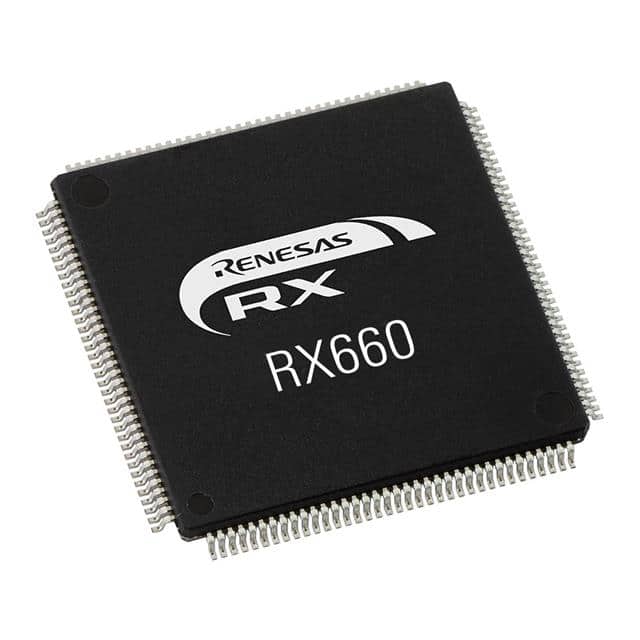

The Renesas R5F56609BGFM#10 is a high-performance 32-bit microcontroller from the RX600 series, operating at a speed of 120MHz. It features 1MB of FLASH program memory and 128KB of RAM, along with 32KB of EEPROM.
This microcontroller supports a wide range of connectivity options including CANbus, EBI/EMI, I2C, LINbus, SCI, and SPI. It is equipped with peripherals such as DMA, LVD, POR, PWM, and WDT, and offers 55 I/O lines. The device operates within a voltage supply range of 2.7V to 5.5V and has an operating temperature range of -40°C to 105°C (TA).
The R5F56609BGFM#10 is supplied in a 64-LFQFP (10x10) surface mount package. It includes data converters with A/D 14x12b and D/A 2x12b capabilities. The oscillator type can be external or internal.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.7V to 5.5V.
It comes in a 64-LFQFP surface mount package.
-40°C to 105°C.
Yes, it is RoHS3 compliant.
