| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,289 pcs
|
1289 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

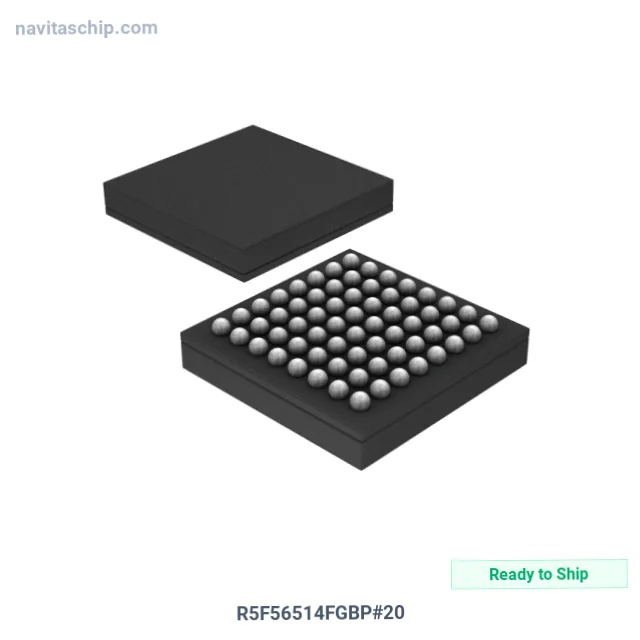

This Renesas R5F56514FGBP#20 is a 32-bit microcontroller based on the RXv2 core, designed for embedded applications. It offers 512KB of FLASH program memory and 256KB of RAM, with a maximum clock speed of 120MHz.
The microcontroller supports a wide range of connectivity options including I²C, LINbus, MMC/SD, QSPI, SCI, SPI, UART/USART, and USB. It is equipped with peripherals such as DMA, LVD, POR, PWM, and WDT, and provides 41 I/O lines.
The device operates within a supply voltage range of 2.7V to 3.6V and features 10-bit Analog-to-Digital and 12-bit Digital-to-Analog converters. It is housed in a compact 64-TFBGA (4.5x4.5mm) package, suitable for surface mounting.
Key specifications include an operating temperature range of -40°C to 105°C (TA). The part is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 2.7V to 3.6V.
The microcontroller is supplied in a 64-TFBGA (4.5x4.5mm) package.
The operating temperature range is -40°C to 105°C (TA).
Yes, the R5F56514FGBP#20 is RoHS3 compliant.
