| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
189 pcs
|
189 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Number of I/O | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |

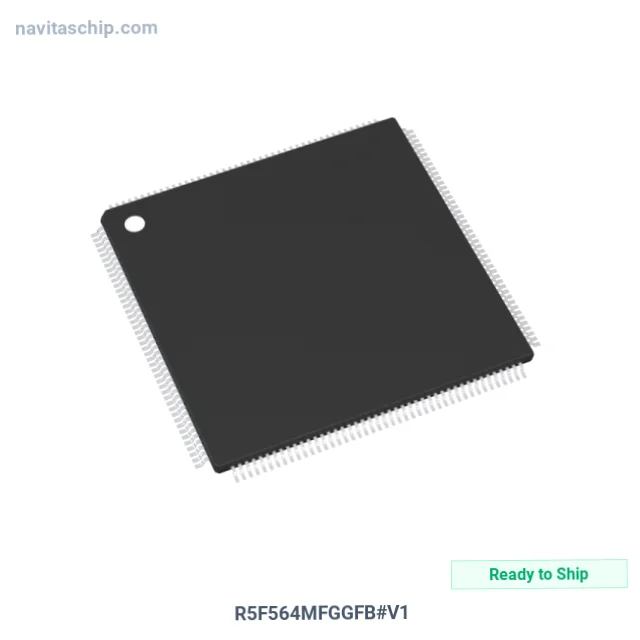

The Renesas R5F564MFGGFB#V1 is a 32-bit microcontroller from the RXv2 core family, operating at speeds up to 120MHz. It offers 2MB of Flash program memory and 512KB of RAM, along with 64KB of EEPROM.
Key peripherals include DMA, LVD, POR, PWM, and WDT. Connectivity options encompass CANbus, EBI/EMI, Ethernet, I2C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, and USB. It features 29x12-bit Analog-to-Digital converters and 2x12-bit Digital-to-Analog converters.
This microcontroller is housed in a 144-LFQFP (20x20) package and supports surface mount installation. It operates within a voltage range of 2.7V to 3.6V and has an operating temperature range of -40°C to 105°C (TA).
Environmental compliance includes RoHS compliance and REACH unaffected status. The Moisture Sensitivity Level (MSL) is rated at 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 2.7V to 3.6V.
It is supplied in a 144-LFQFP (20x20) package.
The operating temperature range is -40°C to 105°C (TA).
Yes, it is RoHS3 Compliant.
