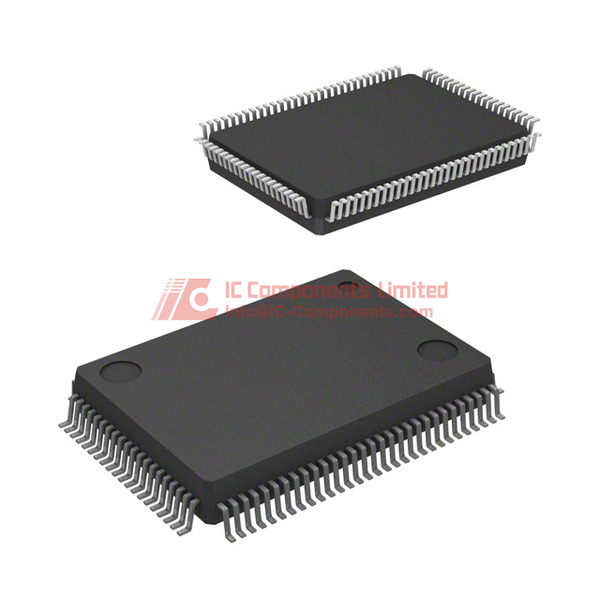

R5F3650RNFB#U0 The Renesas R5F3650RNFB#U0 is a 16-bit microcontroller featuring 640KB of FLASH program memory and 47K x 8 RAM. It operates at speeds up to 32MHz.
Mfr Part #:

R5F3650RNFB#U0

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas R5F3650RNFB#U0 is a 16-bit microcontroller featuring 640KB of FLASH program memory and 47K x 8 RAM. It operates at speeds up to 32MHz.
✓ Total Stock: 525 pcs
$ Price Range: $6.40

R5F3650RNFB#U0 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
525 pcs
On Request
525 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R5F3650RNFB#U0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
EEPROM Size
Failure Rate
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
View Similar Products (0)

R5F3650RNFB#U0 Description

Short technical summary and product information.

This Renesas R5F3650RNFB#U0 is a 16-bit microcontroller from the M16C™ series, designed for embedded applications. It offers 640KB of FLASH program memory and 47K x 8 RAM, with a core processor based on the M16C/60 architecture.



The microcontroller operates within a supply voltage range of 2.7V to 5.5V and features a maximum speed of 32MHz. It includes essential peripherals such as DMA, LVD, POR, PWM, and WDT, along with 26x10-bit Analog-to-Digital converters and 2x8-bit Digital-to-Analog converters. Connectivity options include EBI/EMI, I²C, SIO, and UART/USART.



The device is housed in a 100-LFQFP package and supports surface mount installation. It operates within an ambient temperature range of -20°C to 85°C. The RoHS status is compliant with RoHS3 standards, and it has a Moisture Sensitivity Level (MSL) of 1.

R5F3650RNFB#U0 Quick Information

Product Type: Microcontroller
Series: M16C™
Canonical Name: Renesas R5F3650RNFB#U0 16-Bit Microcontroller
Subcategory: Microcontrollers

R5F3650RNFB#U0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R5F3650RNFB#U0 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

R5F3650RNFB#U0 Features

  • 16-bit M16C/60 core processor.
  • 640KB FLASH program memory.
  • 47K x 8 RAM size.
  • 32MHz operating speed.
  • 100-LFQFP surface mount package.

R5F3650RNFB#U0 Applications

  • Suitable for embedded microcontroller applications.
  • Ideal for industrial automation control systems.
  • Used in consumer electronics with low voltage requirements.
  • Applicable in data acquisition and sensor interfaces.
  • Suitable for temperature-sensitive environments.

R5F3650RNFB#U0 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the R5F3650RNFB#U0?

The operating voltage is 2.7V to 5.5V.

What is the package type for this microcontroller?

The package type is 100-LFQFP for surface mounting.

What is the operating temperature range?

The operating temperature range is -20°C to 85°C (TA).

Is the R5F3650RNFB#U0 RoHS compliant?

Yes, it is RoHS3 Compliant.
