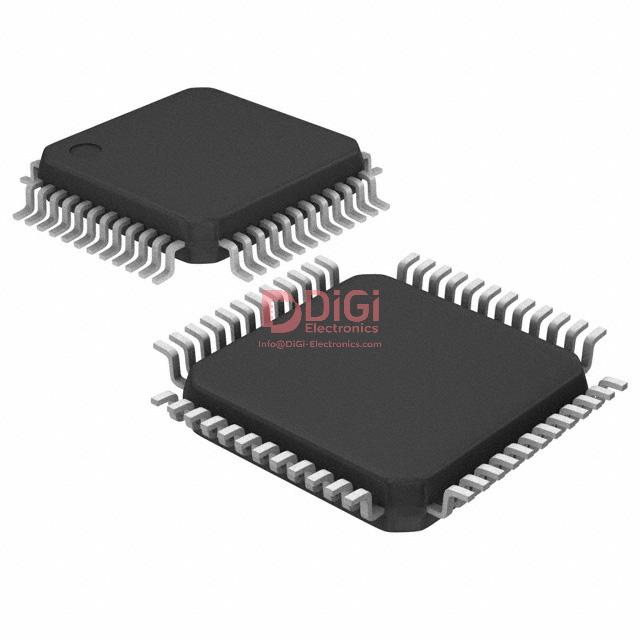

R5F11MPEAFB#30 The Renesas R5F11MPEAFB#30 is a 16-bit microcontroller featuring 64KB of FLASH program memory and 5.5KB of RAM. It operates at speeds up to 24MHz.
Mfr Part #:

R5F11MPEAFB#30

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas R5F11MPEAFB#30 is a 16-bit microcontroller featuring 64KB of FLASH program memory and 5.5KB of RAM. It operates at speeds up to 24MHz.
✓ Total Stock: 250 pcs
$ Price Range: $6.40

R5F11MPEAFB#30 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R5F11MPEAFB#30 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
EEPROM Size
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
View Similar Products (0)

R5F11MPEAFB#30 Description

Short technical summary and product information.

The Renesas R5F11MPEAFB#30 is a 16-bit microcontroller from the RL78 family, designed for embedded applications. It offers 64KB of FLASH program memory and 5.5KB of RAM, with an additional 8KB of EEPROM.



This microcontroller operates at a speed of 24MHz and supports a wide voltage range from 1.8V to 3.6V. It includes various peripherals such as LCD, LVD, POR, PWM, and WDT, along with data converters (A/D 14x12b; D/A 2x12b). Connectivity options include CSI, I²C, LINbus, SPI, and UART/USART.



The device is housed in a 100-LQFP package and is designed for surface mount applications. It operates within a temperature range of -40°C to 85°C (TA). The R5F11MPEAFB#30 provides 79 I/O pins for flexible integration into various designs.

R5F11MPEAFB#30 Quick Information

Product Type: Microcontroller
Series: RL78/G13
Canonical Name: Renesas R5F11MPEAFB#30 16-Bit Microcontroller
Subcategory: Microcontrollers

R5F11MPEAFB#30 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R5F11MPEAFB#30 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

R5F11MPEAFB#30 Features

  • 16-bit RL78 core processor.
  • 64KB FLASH program memory.
  • 5.5KB RAM and 8KB EEPROM.
  • Operates at 24MHz speed.
  • 100-LQFP surface mount package.

R5F11MPEAFB#30 Applications

  • Suitable for embedded control systems.
  • Ideal for applications requiring low power.
  • Used in consumer electronics devices.
  • Applicable in industrial automation.

R5F11MPEAFB#30 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the program memory size of the R5F11MPEAFB#30?

The program memory size is 64KB (64K x 8).

What type of program memory does the R5F11MPEAFB#30 use?

It uses FLASH program memory.

What is the RAM size for this microcontroller?

The RAM size is 5.5K x 8.

What is the operating voltage range?

The operating voltage is between 1.8V and 3.6V.

What is the operating temperature range?

The operating temperature is -40°C to 85°C (TA).

What package is the R5F11MPEAFB#30 supplied in?

It is supplied in a 100-LQFP package.

What are the connectivity options available?

Connectivity options include CSI, I²C, LINbus, SPI, and UART/USART.
