| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,152 pcs
|
1152 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |

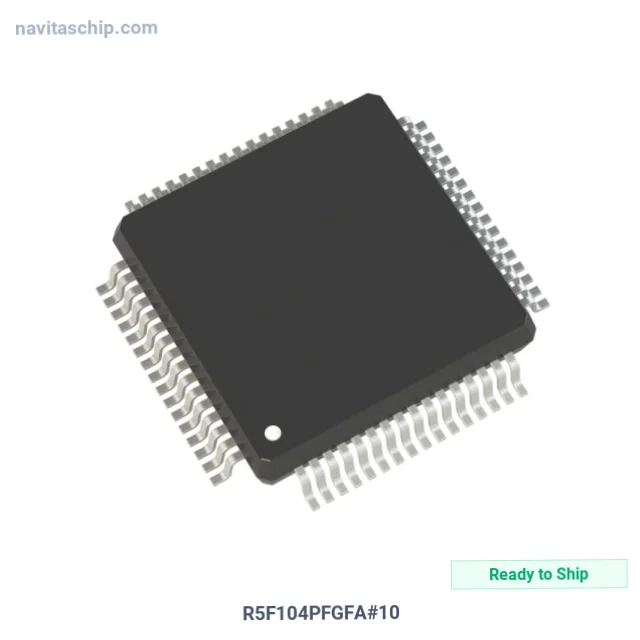

This Renesas R5F104PFGFA#10 is a 16-bit microcontroller from the RL78 family, offering 96KB of FLASH program memory and 12KB of RAM. It operates with a supply voltage ranging from 2.4V to 5.5V and features a maximum clock speed of 32MHz.
Key peripherals include CSI, I2C, LINbus, and UART/USART, along with LVD, POR, PWM, and WDT functions. The device has 86 I/O pins and includes integrated Analog-to-Digital (A/D) converters (20x8/10b) and Digital-to-Analog (D/A) converters (2x8b).
The microcontroller is designed for operation within a temperature range of -40°C to 105°C (TA). It is available in a surface mountable 100-LQFP (14x20) package. The product is listed as RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The device operates within a voltage range of 2.4V to 5.5V.
It uses a 100-LQFP (14x20) surface mount package.
-40°C to 105°C (TA).
RoHS3 compliance status is unverified.
