| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,328 pcs
|
3328 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |
The Renesas R5F100GCGNA#00 is a 16-bit microcontroller from the RL78/G13 series, designed for embedded applications. It features 32KB of Flash program memory and 4KB of EEPROM, complemented by 2KB of RAM. The microcontroller operates at speeds up to 32MHz, utilizing an internal oscillator.
This device supports a wide operating voltage range of 2.4V to 5.5V and includes various peripherals such as DMA, LVD, POR, PWM, and WDT. Connectivity options include CSI, I²C, LINbus, and UART/USART. It also incorporates an A/D converter with 10x8/10-bit resolution.

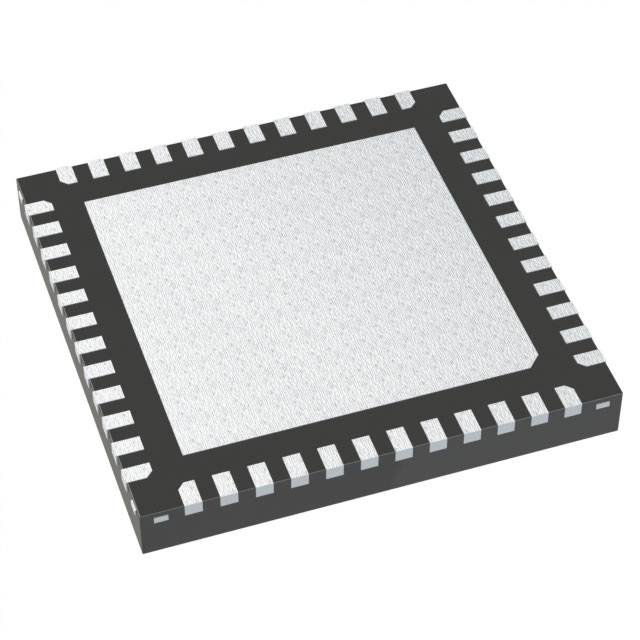

The R5F100GCGNA#00 is packaged in a 48-WFQFN exposed pad (48-HWQFN 7x7mm) and is designed for surface mounting. It offers 34 I/O pins and operates within a temperature range of -40°C to 105°C (TA).
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The program memory size is 32KB.
It uses FLASH program memory.
The RAM size is 2KB.
It operates from 2.4V to 5.5V.
The maximum operating temperature is 105°C.
It is supplied in a 48-HWQFN (7x7mm) package.
It has 34 I/O pins.
