142-9701-301
Cinch
SMA non-magnetic jack right angle PCB mount coaxial connector with 50 Ohm impedance and 18 GHz frequency rating.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Termination Style |

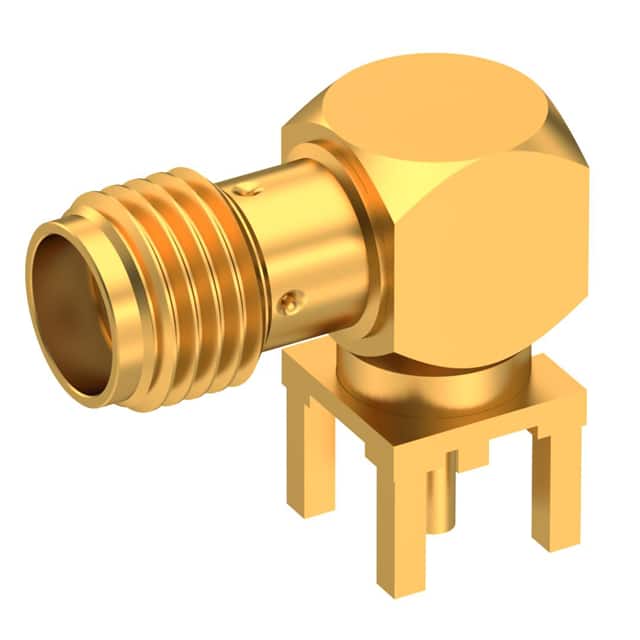

The Radiall R125680000 is an SMA coaxial connector featuring a jack, female socket interface. Designed for 50 Ohm impedance, it supports frequencies up to 18 GHz, making it suitable for high-frequency RF applications. The connector uses a threaded fastening mechanism for secure coupling and offers through hole, right angle mounting.
This connector employs beryllium copper center contact and gold-plated housing for excellent conductivity and corrosion resistance. Termination is via solder for both contact and shield, ensuring reliable electrical connections. The part is RoHS3 compliant and has an MSL rating of 1 (unlimited), indicating no moisture sensitivity restrictions.
| Qty | Low | High |
|---|---|---|
| 1+ | $39.67 | $39.67 |
| 10+ | $33.72 | $33.72 |
| 25+ | $31.61 | $31.61 |
| 50+ | $30.10 | $30.10 |
| 100+ | $28.66 | $28.66 |
| 300+ | $26.53 | $26.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohms.
18 GHz.
Through hole, right angle.
Beryllium copper.
Yes, RoHS3 compliant per unverified data.
