| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| SVHC Present | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

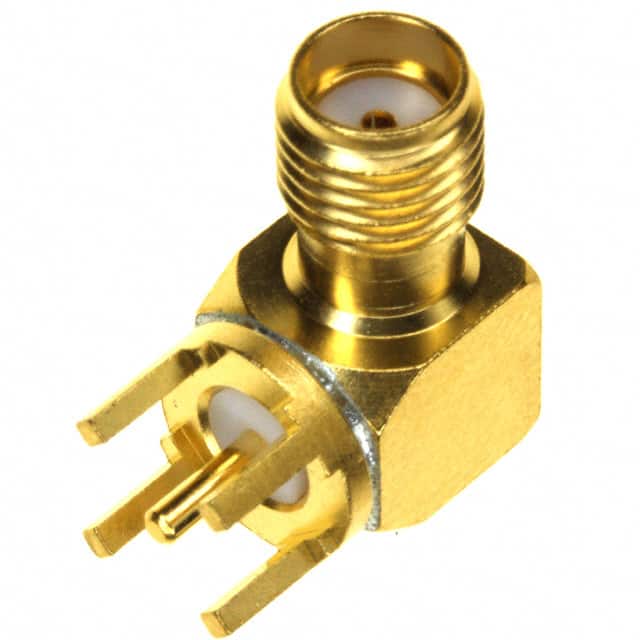

The 142-9701-301 is an SMA non-magnetic jack coaxial connector from Cinch Connectivity Solutions. It features a right angle through-hole mounting style with solder contact and shield termination. The connector is designed for 50 Ohm impedance and supports frequencies up to 18 GHz.
This connector uses a threaded fastening type and a beryllium copper center contact material. The gold-plated housing provides corrosion resistance and reliable electrical performance. The non-magnetic construction makes it suitable for applications where magnetic interference must be minimized.
The connector is RoHS3 compliant and has an MSL rating of 1 (unlimited). It is designed for printed circuit board mounting and is part of the Johnson brand of RF connectors from Cinch.
50 Ohm.
18 GHz.
Through hole, right angle.
SMA jack with female socket.
Yes, it is a non-magnetic connector.
Solder termination for both contact and shield.
Threaded.
