1-1337482-0
TE Connectivity
SMB straight jack male pin connector with 50 Ohm impedance, rated to 4 GHz, through hole mount with solder termination.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
328 pcs
|
328 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

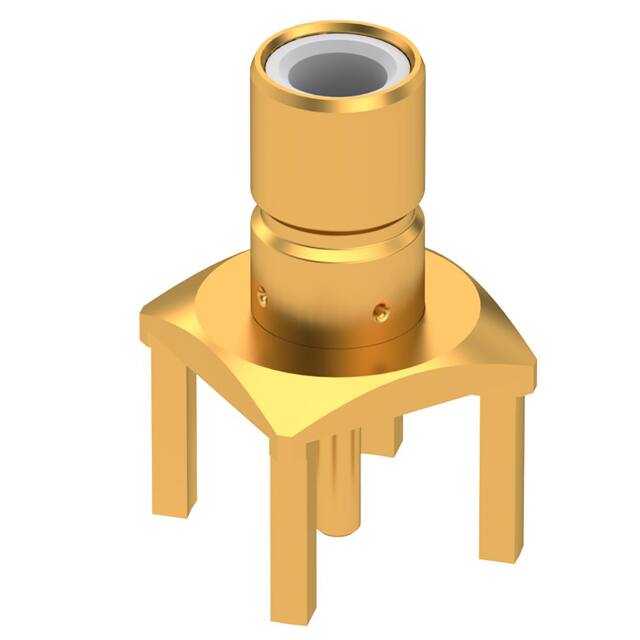

The Radiall R114426000 is an SMB coaxial connector assembly designed for RF applications. It features a jack, male pin configuration with through hole mounting for secure PCB attachment. The connector utilizes a snap-on fastening mechanism for quick and reliable connections.
This connector offers 50 Ohm characteristic impedance and is rated for a maximum frequency of 4 GHz, making it suitable for various RF signal transmission needs. The center contact is made of brass, and the housing is gold plated for enhanced conductivity and corrosion resistance.
Termination is via solder for both contact and shield, ensuring robust electrical connections. With a single port design, it is ideal for straightforward coaxial interconnections in electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.38 | $7.38 |
| 10+ | $6.28 | $6.28 |
| 25+ | $5.88 | $5.88 |
| 50+ | $5.60 | $5.60 |
| 100+ | $5.33 | $5.33 |
| 300+ | $4.94 | $4.94 |
| 500+ | $4.76 | $4.76 |
| 1,000+ | $4.53 | $4.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
SMB.
Jack, Male Pin.
Through Hole.
50 Ohm.
4 GHz.
Snap-On.
Gold.
