| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19,607 pcs
|
19607 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
81 pcs
|
81 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

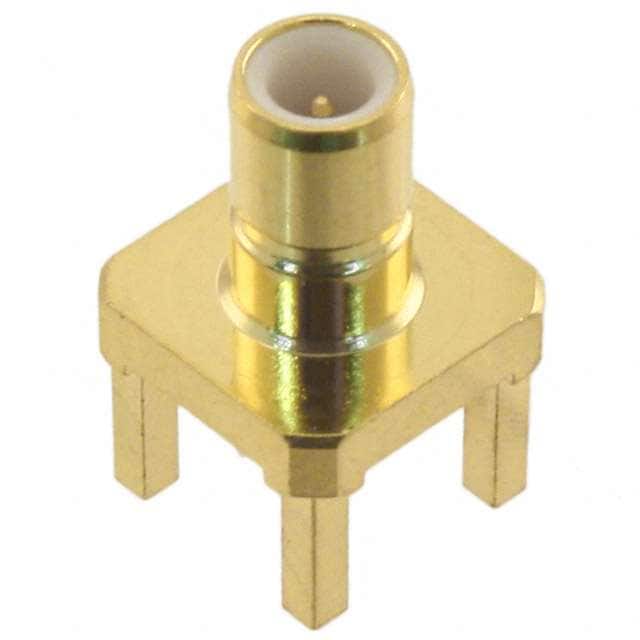

The 1-1337482-0 is an SMB coaxial connector from TE Connectivity featuring a straight jack configuration with a male pin center contact. Designed for 50 Ohm impedance systems, it supports RF applications up to 4 GHz.
This connector uses a snap-on fastening type for quick mating and includes a gold-plated brass center contact. The housing is gold colored. Termination is via through hole solder for both the center contact and shield, making it suitable for PCB mounting.
Typical applications include RF signal connections in telecommunications, test equipment, and wireless infrastructure where a compact, reliable SMB interface is required.
50 Ohms.
4 GHz.
Through hole mounting with solder termination.
SMB (SubMiniature version B).
Snap-on coupling.
Brass with gold plating.
Gold.
