| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Quiescent Current | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

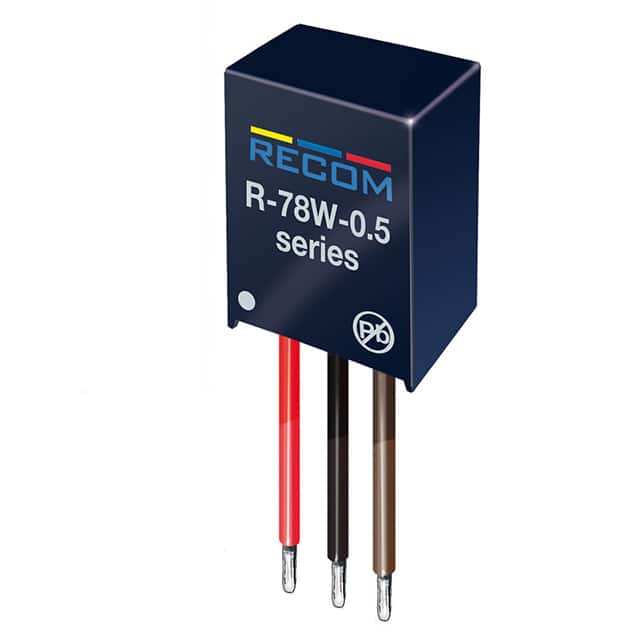

The RECOM Power R-78W12-0.5 is a 0.5 Amp SIP3 wired DC/DC converter designed for stable voltage supply in various applications. It boasts high efficiencies of up to 96%, eliminating the need for heatsinks. The module features continuous short circuit protection and operates within a wide temperature range of -40°C to 85°C.
With a compact size of 11.5 x 8.5 x 17.5mm, this converter is suitable for applications such as high power LED lighting, battery-powered systems, cooling systems, or fans. It requires no PCB for certain applications and draws minimal current under no-load conditions. The converter is certified to IEC/EN60950 standards.
Key electrical specifications include an input voltage range of 6.5VDC to 32VDC, a nominal output voltage of 12VDC, and an output current of 500mA. The internal operating frequency is typically 330kHz, with output ripple and noise limited to 50mVp-p. The unit is chassis mountable and designed for reliable performance in industrial and commercial environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The R-78W12-0.5 has a nominal output voltage of 12 VDC.
The R-78W12-0.5 can provide a maximum output current of 500mA.
The efficiency of the R-78W12-0.5 is up to 96%.
The operating temperature range for this converter is -40°C to 85°C.
Yes, the R-78W12-0.5 is RoHS3 Compliant.
