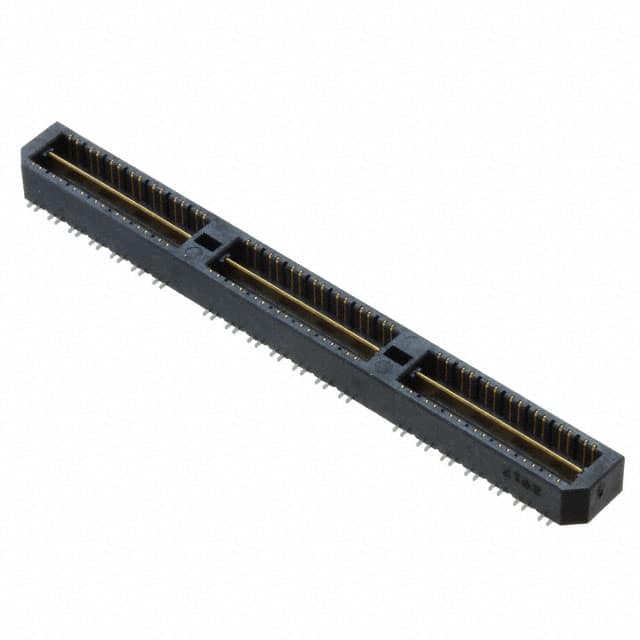

The QTE-042-01-L-D-DP-A is a differential pair array male connector from Samtec's QTE series. It features 84 positions arranged in 2 rows with a 0.80mm pitch, designed for surface mount (SMD) attachment. The connector has gold-plated contacts with 10µin gold over 50µin nickel, ensuring reliable signal integrity. It includes a board guide and an integrated ground bus (plane) for enhanced electrical performance and mechanical alignment. The mated stacking height is 5mm when paired with a QSE series receptacle. Electrical ratings include 2A per pin (with 2 pins powered) and 23A per ground plane (with 1 ground plane powered), with a voltage rating of 225 VAC at 5mm stack height. The operating temperature range is -55°C to +125°C, and it is rated for 100 mating cycles. The insulator is made of liquid crystal polymer, and contacts are phosphor bronze. The connector is lead-free solderable with SMT lead coplanarity of 0.10mm maximum. Packaging is tray (default). This connector is suitable for high-density mezzanine board-to-board applications requiring differential signaling.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.65 | $14.65 |
| 42+ | $11.27 | $11.27 |
| 84+ | $10.99 | $10.99 |
| 126+ | $10.89 | $10.89 |
| 168+ | $8.92 | $8.92 |
| 210+ | $8.21 | $8.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
84 positions in 2 rows.
0.80mm (0.031 inches).
2A per pin (with 2 pins powered) and 23A per ground plane (with 1 ground plane powered).
225 VAC when mated at 5mm stack height.
Surface mount (SMD).
-55°C to +125°C.
100 cycles.
