Mfr Part #:

PXN017-30QLJ

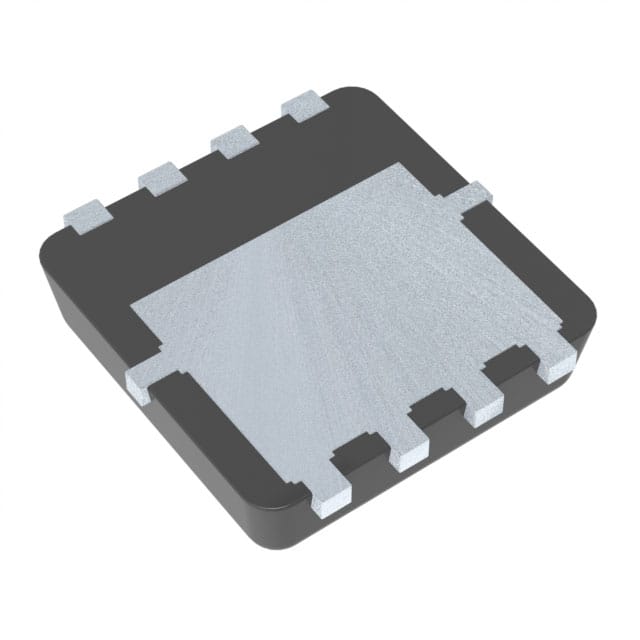

Name: PXN017-30QLJ
Brand: Nexperia USA Inc.
SKU: PXN017-30QLJ

Mfr Name: Nexperia USA Inc.

Description:

PXN017-30QL/SOT8002/MLPAK33

Stock on Request

PXN017-30QLJ Description

Short technical summary and product information.

PXN017-30QL/SOT8002/MLPAK33

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	Nexperia USA Inc.
Current	7.9A (Ta), 20A (Tc)
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	7.7 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	350 pF @ 15 V
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Power Dissipation (Max)	1.7W (Ta), 10.9W (Tc)
Rds On (Max) @ Id, Vgs	17.4mOhm @ 7.9A, 10V
Supplier Device Package	MLPAK33
Technology	MOSFET (Metal Oxide)
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.2V @ 250µA
