| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuation Force | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination Type, Color | |
| Illumination Voltage (Nominal) | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage Rating |

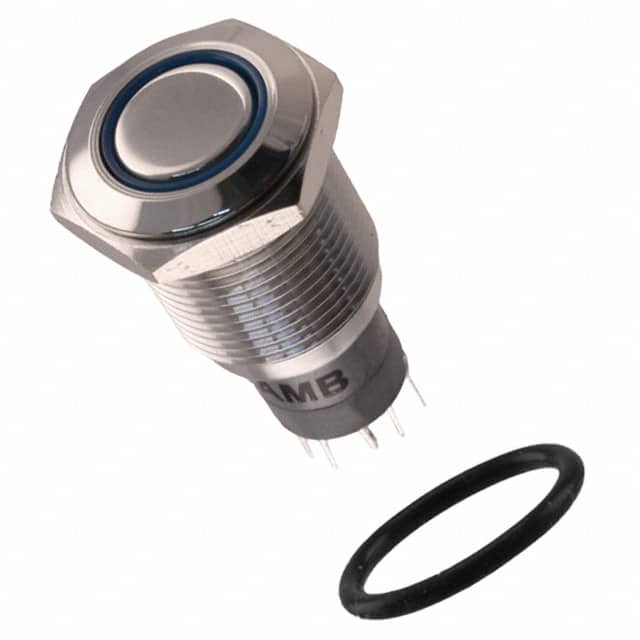

The E-Switch PV3F2H0SS-341 is an illuminated anti-vandal pushbutton switch designed for robust applications. It features a DPDT (Double Pole, Double Throw) contact arrangement and is rated for 2A at 48VDC.
This switch offers a panel mount, front-facing design with a 16mm diameter cutout and a solder lug termination style. The actuator is round, button, and flush, with no specific marking. It provides IP40 ingress protection, making it suitable for environments where dust and debris are present.
The illumination is provided by a blue LED with a nominal voltage of 2.8 VDC. The operating temperature range for this switch is -20°C to 55°C. Key specifications include a mechanical life of 200,000 cycles and an electrical life of 50,000 cycles, with a contact resistance of 50mΩ max. and insulation resistance of 1000MΩ max.
Applications for this type of switch include security devices, audio/visual equipment, industrial controls, and kiosks, where durability and clear visual indication are important.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switch has a current rating of 2A at 48VDC.
The switch features a DPDT (Double Pole, Double Throw) circuit arrangement.
The operating temperature range is -20°C to 55°C.
The switch has an IP40 ingress protection rating.
The illumination is provided by a blue LED.
A circular panel cutout of 16.00mm diameter is required.
The mechanical life is rated for 200,000 cycles.
