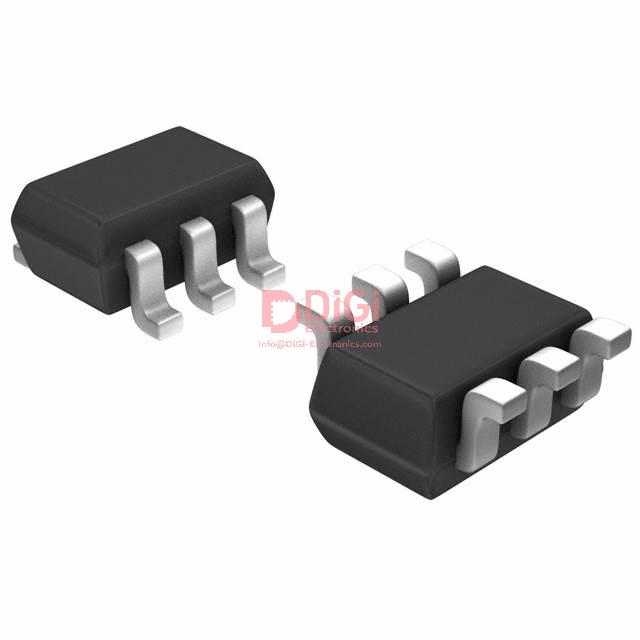

The Nexperia PUMD3,135 is a surface-mount resistor-equipped transistor (RET) that integrates both NPN and PNP bipolar junction transistors (BJTs) within a single package. This configuration simplifies circuit design and reduces component count for applications such as low current peripheral drivers and control of IC inputs.
Key electrical characteristics include a collector-emitter voltage (VCEO) of 50V and a maximum output current (IO) of 100mA per transistor. It features built-in bias resistors with a typical value of 10kΩ for R1. The device is supplied in a compact 6-TSSOP, SC-88, or SOT-363 package, suitable for surface mounting.
This component is designed to replace general-purpose transistors in digital applications, offering reduced pick-and-place costs due to its integrated nature. The PUMD3,135 is AEC-Q101 qualified, indicating its suitability for demanding automotive and industrial environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector-emitter voltage (VCEO) for the PUMD3,135 is 50V.
The PUMD3,135 has a maximum output current (IO) of 100mA.
The PUMD3,135 is available in a 6-TSSOP, SC-88, or SOT-363 package.
Yes, the PUMD3,135 features built-in bias resistors with a typical value of 10kΩ for R1.
The PUMD3,135 has a minimum DC current gain (hFE) of 30 at 5mA collector current and 5V collector-emitter voltage.
