| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40,020 pcs
|
40020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Industrial Grade | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Power | |
| Resistor | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

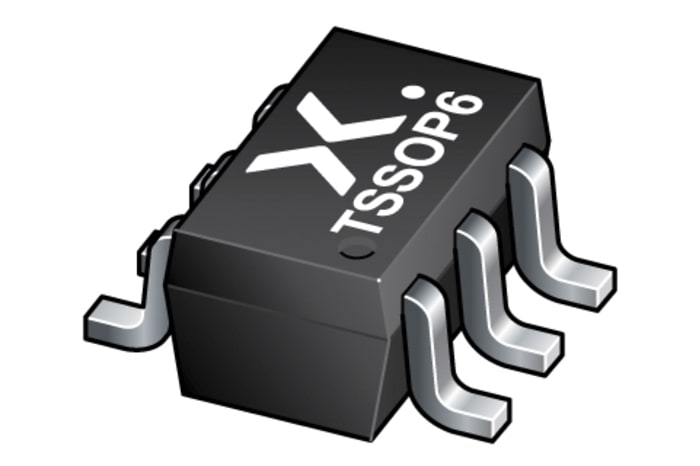

The Nexperia PUMD24,115 is a resistor-equipped transistor array containing both NPN and PNP configurations within a single package. This component is designed for surface mount applications and comes in a compact 6-TSSOP, SC-88, SOT-363 package.
Key electrical characteristics include a maximum collector-emitter voltage (Vceo) of 50V and a maximum DC collector current (Idc) of 100mA. The minimum DC current gain (hFE) is 80 at 5mA collector current and 5V Vce. It also features a maximum power dissipation of 300mW and a Vce saturation of 150mV at 250µA Ib and 5mA Ic.
This transistor array includes a built-in resistor with a nominal value of 100kΩ. The operating temperature range spans from -65°C to 150°C. The PUMD24,115 is suitable for various electronic circuits requiring integrated NPN and PNP transistors with pre-bias functionality.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (Vceo) for the PUMD24,115 is 50V.
The maximum DC collector current (Idc) for the PUMD24,115 is 100mA.
The minimum DC current gain (hFE) is 80 at 5mA collector current and 5V Vce.
The PUMD24,115 uses a 6-pin SOT package, specifically listed as 6-TSSOP, SC-88, SOT-363.
The operating temperature range for the PUMD24,115 is from -65°C to 150°C.
