| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Failure Rate | |
| Illumination | |
| Mounting Type | |
| Number of Positions | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Switch Type | |
| Termination Style |

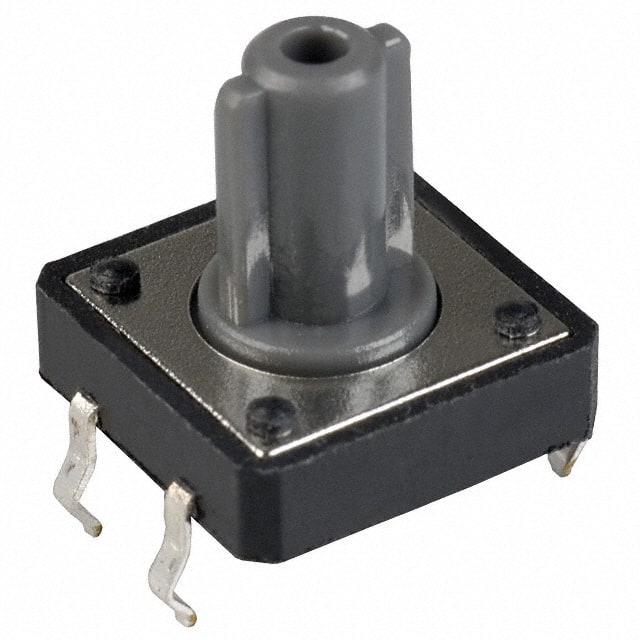

This C&K Components PTS125SM12 is a TACT microswitch designed for various applications. It features a Single Pole Single Throw Normally Open (SPST-NO) contact configuration, rated for 0.05A at 12VDC.
The switch has a Through Hole (THT) mounting type and a standard actuator orientation. The operating force is specified at 1.8N, with a button height of 12mm. The body dimensions are 12mm x 12mm, and the button shape is round. The switching method is Off-Mom (momentary).
Environmental specifications include an operating temperature range of -20°C to 70°C. The maximum contact resistance is 100mΩ, and the minimum insulation resistance is 0.1GΩ. The series is PTS125.
This component is packaged in bags, with a standard quantity of 500 pieces per cardboard package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DC contact rating is 0.05A at 12V DC.
This switch uses Through Hole (THT) mounting.
The operating temperature range is -20°C to 70°C.
The operating force is 1.8N.
The body dimensions are 12mm x 12mm.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
