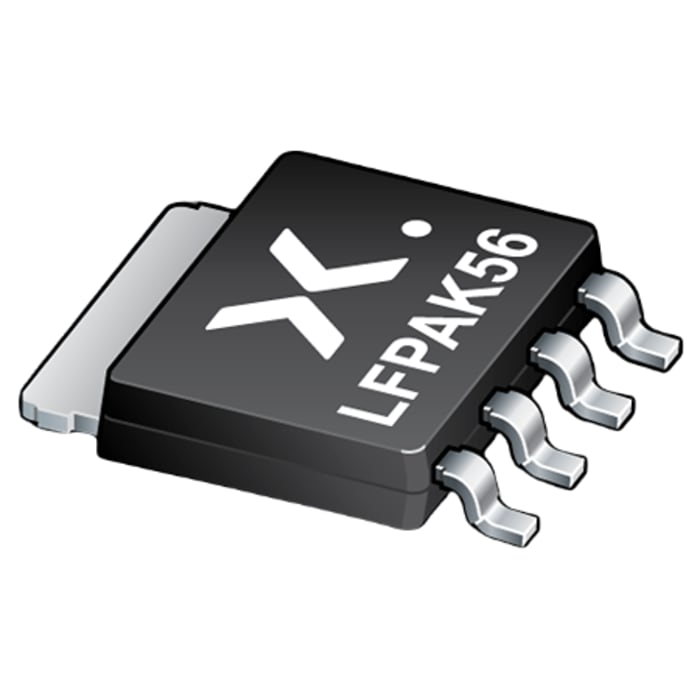

PSMN7R2-100YSFX The Nexperia PSMN7R2-100YSFX is an N-Channel MOSFET with a 100V drain-source voltage and a continuous drain current of 111A. It is housed in a 5-pin LFPAK package.
Mfr Part #:

PSMN7R2-100YSFX

Available from 1 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
The Nexperia PSMN7R2-100YSFX is an N-Channel MOSFET with a 100V drain-source voltage and a continuous drain current of 111A. It is housed in a 5-pin LFPAK package.
✓ Total Stock: 4,020 pcs
$ Price Range: $1.67

PSMN7R2-100YSFX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,020 pcs
On Request
4020 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PSMN7R2-100YSFX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Channel Type
Failure Rate
Industrial Grade
Lead Spacing
Medical Grade
Military Grade
View Similar Products (0)

PSMN7R2-100YSFX Description

Short technical summary and product information.

This Nexperia PSMN7R2-100YSFX is a Type N MOSFET from the PSM series, designed for surface mounting. It offers a maximum continuous drain current of 111A and a maximum drain-source voltage of 100V.



The MOSFET features a low maximum drain-source resistance of 6.9mΩ and a typical gate charge of 50nC. Its maximum power dissipation is rated at 194W. The operating temperature range is from -55°C to 175°C.



Packaged in a 5-pin LFPAK, this component is suitable for various power electronic applications requiring robust performance and thermal management. The enhancement mode channel provides efficient switching characteristics.

PSMN7R2-100YSFX Quick Information

Product Type: MOSFET
Series: PSM
Canonical Name: Nexperia PSMN7R2-100YSFX N-Channel MOSFET
Subcategory: N-Channel MOSFET

PSMN7R2-100YSFX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PSMN7R2-100YSFX Estimated Pricing

Qty Low High
1+ $1.67 $1.67

Estimated market price range - modelled values for guidance only, not live distributor offers.

PSMN7R2-100YSFX Features

  • N-Channel MOSFET with 100V drain-source voltage.
  • High continuous drain current of 111A.
  • Low 6.9mΩ maximum drain-source resistance.
  • Operates from -55°C to 175°C.
  • Surface mount 5-pin LFPAK package.

PSMN7R2-100YSFX Applications

  • Suitable for power switching circuits.
  • Ideal for high current applications.
  • Used in power management systems.
  • Efficient for DC-DC converters.

PSMN7R2-100YSFX FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum continuous drain current for the PSMN7R2-100YSFX?

The maximum continuous drain current is 111A.

What is the maximum drain-source voltage of this Nexperia MOSFET?

The maximum drain-source voltage is 100V.

What is the typical gate charge for the PSMN7R2-100YSFX?

The typical gate charge is 50nC.

What is the operating temperature range for this MOSFET?

The operating temperature range is from -55°C to 175°C.

What type of channel does the PSMN7R2-100YSFX have?

It is a Type N channel MOSFET.

What package type is the PSMN7R2-100YSFX supplied in?

It is supplied in a 5-pin LFPAK package.
