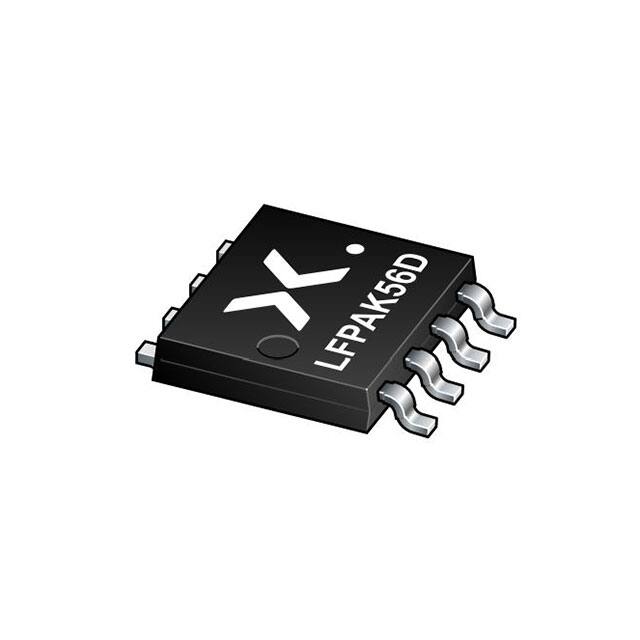

The Nexperia PSMN013-40VLDX is a dual N-channel MOSFET utilizing NextpowerS3 technology, housed in an LFPAK56D package. This configuration is ideal for half-bridge switching applications, offering reduced PCB complexity and improved system efficiency.
Key electrical specifications include a maximum drain-source voltage of 40V and a continuous drain current of 42A. The device exhibits a low on-state resistance (RDSon) of 13.6mOhm at 10A and 10V, contributing to low power losses and high power density. The gate charge (Qg) is rated at a maximum of 19.4nC at 10V.
Operating across a wide temperature range from -55°C to 175°C, the PSMN013-40VLDX is suitable for demanding environments. Its LFPAK56D package with gull wing leads ensures high manufacturability and reliability, making it suitable for applications such as handheld power tools, motor drives, and DC-to-DC systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.96 | $1.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 40V.
The maximum continuous drain current is 42A.
It is packaged in an LFPAK56D surface-mount package.
The maximum power dissipation is 46W.
The Rds(on) is 13.6 milliohms.
-55°C to 175°C.
