| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,521 pcs
|
2521 pcs | On Request | 1 | On Request | On Request | 1528+ | On Request | On Request | |
|
1,100 pcs
|
1100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Mounting Type | |
| Package / Case | |
| SVHC Present | |
| Tape & Reel |

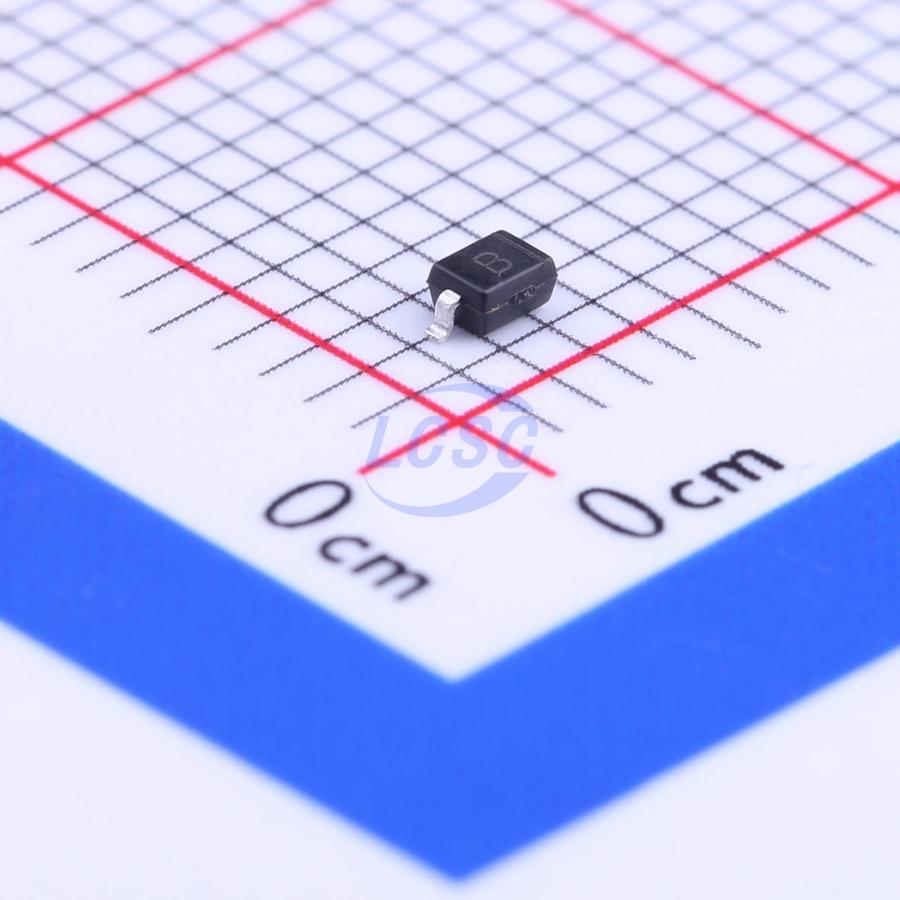

The ProTek Devices PSD05-LF-T7 is a unidirectional Transient Voltage Suppressor (TVS) diode. It is designed to protect sensitive electronic components from transient overvoltage conditions, particularly electrostatic discharge (ESD).
Key electrical specifications include a typical reverse standoff voltage of 5V, a minimum breakdown voltage of 6V, and a maximum clamping voltage of 9.8V at a specified peak pulse current. This makes it suitable for applications requiring robust protection against voltage spikes.
The PSD05-LF-T7 comes in a compact SOD-323 surface mount package, facilitating integration into space-constrained printed circuit board designs. Its surface mount capability allows for automated assembly processes.
This TVS diode is part of the ESD Protection Diodes / TVS Diodes category, offering a cost-effective solution for safeguarding electronic circuits against damaging voltage transients.
The typical reverse standoff voltage for the PSD05-LF-T7 is 5V.
The minimum breakdown voltage for the PSD05-LF-T7 is 6V.
The maximum clamping voltage for the PSD05-LF-T7 at Ipp is 9.8V.
The PSD05-LF-T7 is a unidirectional TVS diode.
The PSD05-LF-T7 is supplied in a SOD-323 package.
The Moisture Sensitivity Level (MSL) for the PSD05-LF-T7 is Level 1.
