| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Flammability | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Power Rating | |
| Qualification | |
| Rated Dissipation | |
| Resistance | |
| Resistance Range | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Tolerance | |
| stability (Maximum @ Damp heat test (56 days) | |
| stability (Maximum @ Endurance test (1000 h, P 70) | |
| stability (Maximum @ Soldering (10 s, 260 °C) |

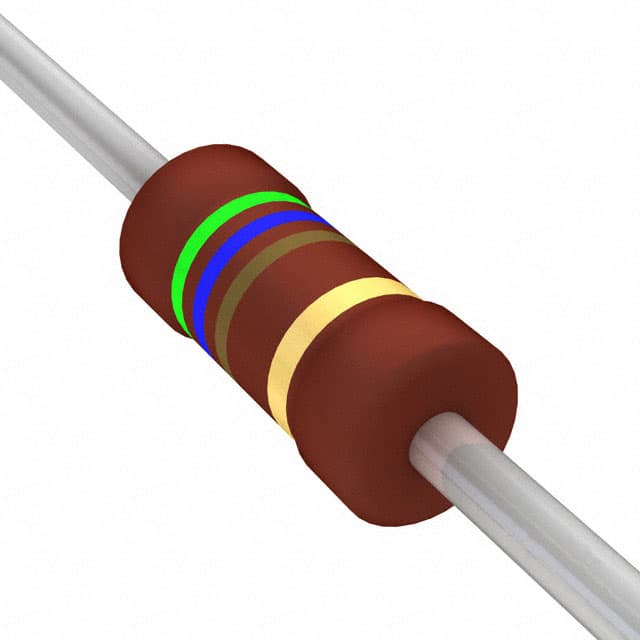

This Vishay Dale PR02000205600JR500 is a power metal film resistor designed for general-purpose power applications and automotive electronics. It features a resistance value of 560 Ohms with a tolerance of ±5% and a power rating of 2W.
The resistor has an axial package with dimensions of 0.154" diameter by 0.394" length (3.90mm x 10.00mm). It operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±250ppm/°C.
Key features include its AEC-Q200 qualification, flameproof insulation coating meeting UL 94 V-0 requirements, and defined fusing characteristics. The homogeneous metal alloy film is deposited on a ceramic body, with tinned copper or copper-clad iron leads welded to end-caps. The coating provides electrical, mechanical, and climatic protection, and is resistant to cleaning solvents per IEC 60068-2-45.
This component is suitable for applications requiring defined fusing characteristics and high power in small packages. Its construction meets active and passive flammability requirements as defined in IEC 60115-1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 560 Ohms.
The power rating is 2W.
The tolerance is ±5%.
The operating temperature range is -55°C to 155°C.
Yes, it is AEC-Q200 qualified.
It uses metal film technology.
The dimensions are 0.154" Dia x 0.394" L (3.90mm x 10.00mm).
