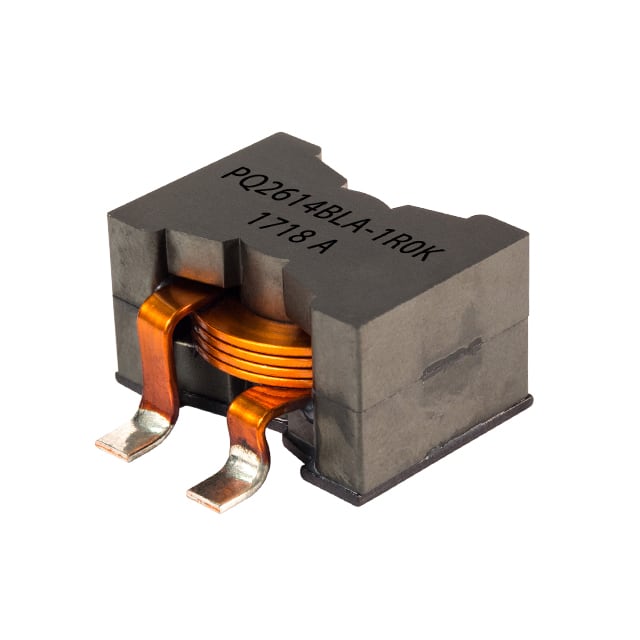

The Bourns PQ2614BHA-100K is a shielded power inductor from the PQ2614BLA/BHA series, designed for demanding applications. This component features a drum core, wirewound construction with a ferrite material, providing a 10µH inductance with a ±10% tolerance.
Key electrical specifications include a low DC resistance of 1.9mΩ maximum and a high current rating of 30A typical. It also offers a saturation current (Isat1) of 23.4A and (Isat2) of 21.5A, ensuring performance under load. The inductor operates within a wide temperature range of -40°C to +155°C and has a self-resonant frequency of 15MHz.
Designed for surface mounting, this inductor measures 27.90mm in length, 19.80mm in width, and 16.00mm in height. It is AEC-Q200 compliant, indicating suitability for automotive and other high-reliability applications. The product is also RoHS compliant and halogen-free.
This shielded power inductor is suitable for various power management circuits where high current handling and stable inductance are critical. Its robust construction and compliance with stringent standards make it a reliable choice for advanced electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 10 µH.
The rated current (Irms) is 21.5 A typical, with a maximum current rating of 30 A.
The DC resistance (DCR) is a maximum of 1.9mΩ.
The operating temperature range is -40°C to +155°C.
Yes, the PQ2614BHA-100K is AEC-Q200 compliant.
The PQ2614BHA-100K is a surface mount inductor in a nonstandard package.
The standard package quantity is 25 pieces per tray.
