| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
193,789 pcs
|
193789 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Current | |
| Forward Voltage (Typical/Maximum @ IF=2 A, Tj=125 °C) | |
| Lead Style | |
| Mounting Type | |
| Non-repetitive Peak Forward Current | |
| Operating Temperature | |
| Peak Repetitive Reverse Voltage | |
| Reverse Current (Maximum @ VR=200 V, Tj=125 °C) | |
| Reverse Current (Maximum @ VR=200 V, Tj=25 °C) | |
| Reverse Recovery Time (trr) | |
| Reverse Voltage | |
| SVHC Present | |
| Speed | |
| Storage Temperature | |
| Storage Temperature Range | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Total Power Dissipation | |
| Voltage |
The PNE20020ERX is a hyperfast recovery rectifier diode from Nexperia, designed for high power density applications. It utilizes planar technology and clip-bond construction to deliver a maximum average forward current of 2 A and a peak repetitive reverse voltage of 200 V. The device features a maximum reverse recovery time of 25 ns, making it suitable for high-frequency switching. The forward voltage is typically 915 mV at 2 A and 25°C, with a maximum of 980 mV.
This diode is optimized for general-purpose rectification, reverse polarity protection, hyperfast switching, and freewheeling applications. It operates over a junction temperature range of up to 175°C and provides low reverse leakage current (200 nA max at 25°C). The planar die design and low inductance contribute to efficient performance in compact circuit designs.

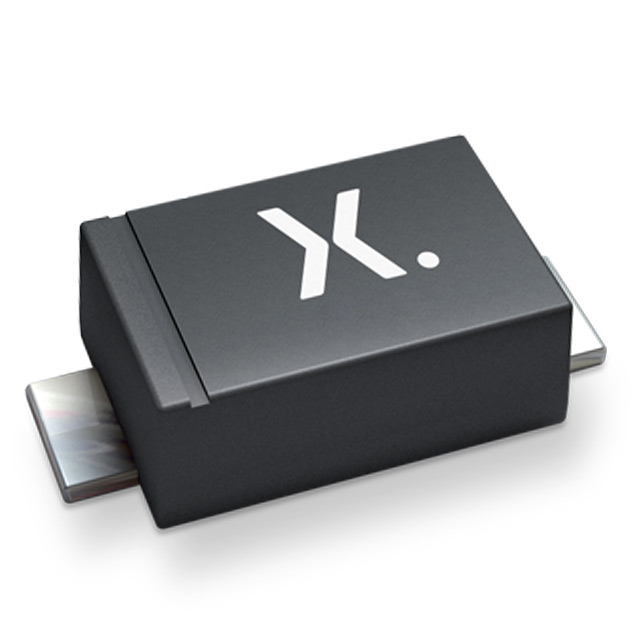

The PNE20020ERX is packaged in a surface-mount SOD-123W (CFP3) package with a typical height of 1 mm, enabling space-saving assembly on PCBs. It is capable of reflow and wave soldering processes. The package is lead-free and RoHS compliant per the datasheet, though compliance status is unverified from external sources.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.48 | $0.48 |
| 10+ | $0.30 | $0.30 |
| 100+ | $0.19 | $0.19 |
| 500+ | $0.14 | $0.14 |
| 1,000+ | $0.13 | $0.13 |
| 3,000+ | $0.10 | $0.10 |
| 6,000+ | $0.09 | $0.09 |
| 9,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive peak reverse voltage is 200 V, and the reverse voltage is also rated at 200 V at 25°C.
The maximum average forward current is 2 A under conditions of δ=0.5, square wave, 20 kHz, and Tsp≤153°C.
At 2 A and 25°C, typical forward voltage is 915 mV, maximum 980 mV. At 125°C, typical is 780 mV, maximum 870 mV.
The maximum reverse recovery time is 25 ns.
It is available in a surface-mount SOD-123W (also known as CFP3) package.
The maximum operating junction temperature is 175°C.
At 200 V and 25°C, maximum reverse current is 200 nA. At 200 V and 125°C, maximum is 20 µA.
