| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,319 pcs
|
1319 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

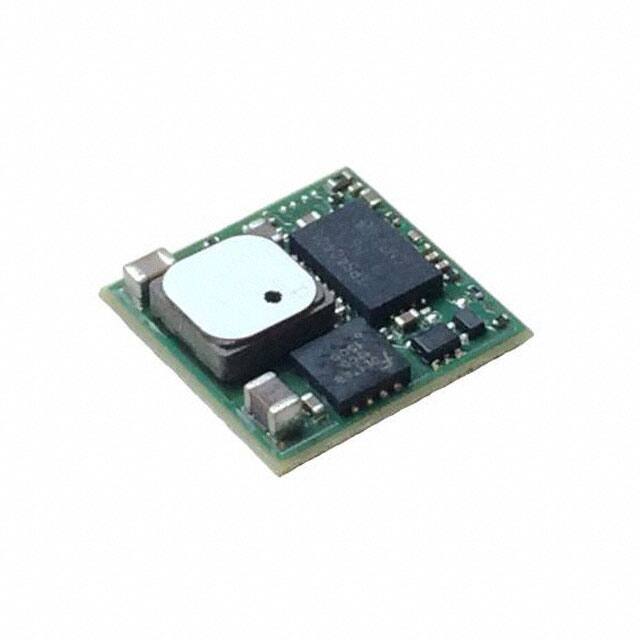

The PNDT012A0X3-SRZ is a Non-Isolated Point-of-Load (PoL) DC DC converter from ABB Power Electronics. It delivers up to 12A output current with a typical efficiency of 92.5%. The module accepts a 3V input and provides an adjustable output voltage range of 0.45V to 5.5V.
This module includes comprehensive protection features such as overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), and undervoltage lockout (UVLO). It also supports remote on/off control with active low logic. The operating temperature range spans -40°C to +85°C, making it suitable for commercial ITE applications.
The device is housed in a 17-SMD package measuring 12.2mm x 12.2mm x 2.8mm, designed for surface mount assembly. It is RoHS3 compliant and rated with MSL level 1 for unlimited floor life.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.87 | $15.87 |
| 5+ | $15.28 | $15.28 |
| 10+ | $15.03 | $15.03 |
| 25+ | $14.75 | $14.75 |
| 50+ | $14.47 | $14.47 |
| 100+ | $14.25 | $14.25 |
| 500+ | $14.07 | $14.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is adjustable from 0.45V to 5.5V.
The operating temperature range is -40°C to +85°C.
It comes in a 17-SMD module with surface mount mounting type.
Yes, it is RoHS3 Compliant (unverified).
It includes overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), and undervoltage lockout (UVLO).
