| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
34,020 pcs
|
34020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| ESD Protection | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

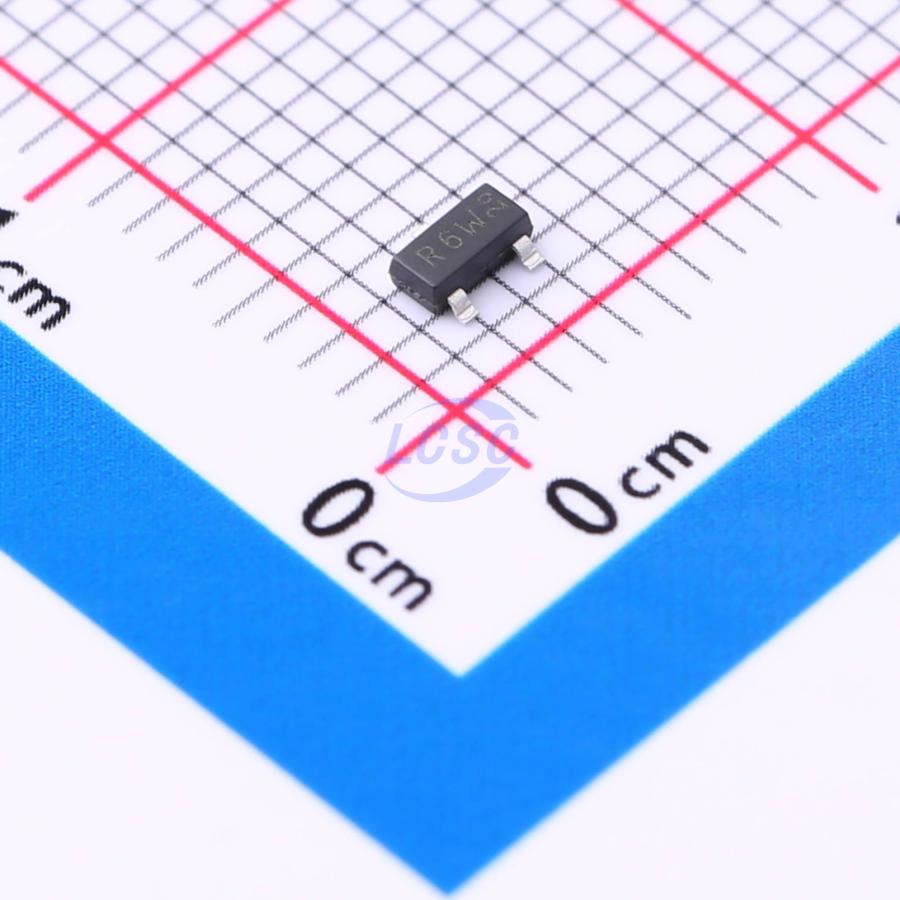

The Nexperia PMV30ENEAR is an N-channel enhancement mode Field-Effect Transistor (FET) utilizing Trench MOSFET technology. It is designed for applications requiring a 40V drain-source voltage and can handle up to 4.8A of current.
Key electrical characteristics include a maximum drain-source on-state resistance (Rds On) of 30mOhm at 4.8A and 10V Vgs, and a gate threshold voltage of 2.5V at 250µA. The MOSFET offers logic-level compatibility and an extended operating temperature range from -55°C to 175°C.
Packaged in a compact TO-236AB (SOT23) surface-mounted device package, the PMV30ENEA is suitable for space-constrained designs. Its features, such as AEC-Q101 qualification and ESD protection greater than 2 kV HBM, make it a reliable choice for various applications.
Common applications for this MOSFET include relay drivers, high-speed line drivers, low-side load switches, and general switching circuits. Its robust design and performance specifications support efficient power management in electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage (Vds) for the PMV30ENEAR is 40V.
The maximum continuous drain current (Id) for the PMV30ENEAR is 4.8A at 25°C ambient temperature with a Vgs of 10V.
The Rds On is a maximum of 30mOhm at a drain current of 4.8A and a gate-source voltage of 10V, with a typical value of 23mOhm at 25°C.
The operating junction and ambient temperature range for the PMV30ENEAR is -55°C to 175°C.
The PMV30ENEAR is supplied in a TO-236AB (SOT23) package.
Yes, the PMV30ENEAR is AEC-Q101 qualified.
