Mfr Part #:

PMV16XNR

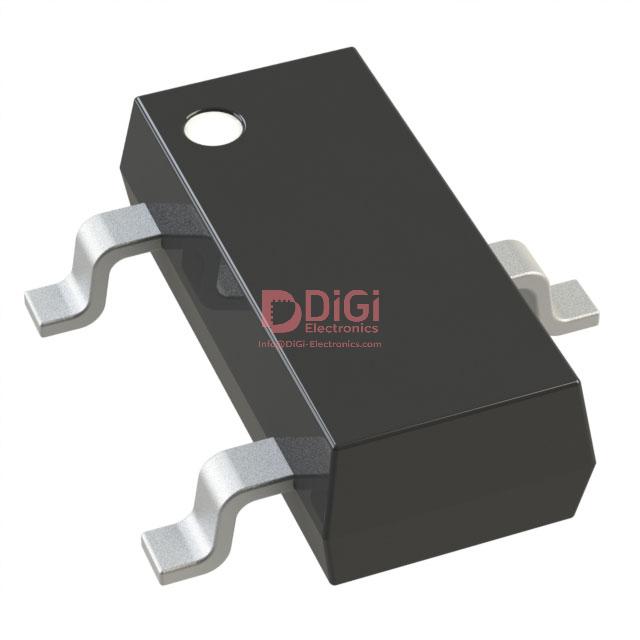

The Nexperia PMV16XNR is an N-channel Trench MOSFET with a 20V drain-source voltage and 6.8A continuous drain current. It comes in a compact TO-236AB package.

✓ Total Stock: 80,754 pcs

$ Price Range: $2.27

PMV16XNR Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	52,734 pcs On Request	52734 pcs	On Request	1	On Request	On Request	25+	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	28,020 pcs On Request	28020 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

PMV16XNR Description

Short technical summary and product information.

This Nexperia PMV16XNR is an N-channel enhancement mode Field-Effect Transistor (FET) utilizing Trench MOSFET technology. It is designed for applications requiring efficient power management and switching capabilities.

The device features a drain-source voltage rating of 20V and a continuous drain current of 6.8A at 25°C ambient temperature. The on-state resistance is a low 20mΩ maximum at 6.8A and 4.5V gate-source voltage. Its low threshold voltage and very fast switching characteristics make it suitable for various applications.

Packaged in a small SOT23 (TO-236AB) surface-mounted device plastic package, the PMV16XNR is ideal for space-constrained designs. The operating temperature range is -55°C to 150°C (TJ), with a total power dissipation of 510mW (Ta) or 6.94W (Tc).

Key applications include LED drivers, power management circuits, low-side load switches, and general switching circuits. The MOSFET technology ensures enhanced power dissipation capability.

PMV16XNR Quick Information

Product Type: MOSFET

Canonical Name: Nexperia PMV16XNR N-Channel Trench MOSFET

Subcategory: Single FETs, MOSFETs

PMV16XNR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PMV16XNR Estimated Pricing

Qty	Low	High
1+	$2.27	$2.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

PMV16XNR Features

N-channel Trench MOSFET technology.
20V drain-source voltage rating.
6.8A continuous drain current.
Low Rds On: 20mΩ max at 6.8A, 4.5V.
Compact TO-236AB (SOT23) package.

PMV16XNR Applications

Ideal for LED driver circuits.
Suitable for power management applications.
Used in low-side load switches.
Effective in general switching circuits.

PMV16XNR FAQs

6 frequently asked questions generated from this part’s specifications.

What is the maximum drain-source voltage of the PMV16XNR?

The maximum drain-source voltage is 20 V.

What is the maximum drain current at 25°C?

The maximum drain current at 25°C is 6.8A.

What package does the PMV16XNR come in?

It comes in a TO-236-3, SC-59, SOT-23-3 package.

What is the typical Rds On value for this MOSFET?

The typical Rds On is 16 milliohms at VGS = 4.5V and ID = 6.8A.

What is the maximum total power dissipation at 25°C?

The maximum total power dissipation is 510mW at 25°C ambient temperature.

Is the PMV16XNR RoHS compliant?

Yes, it is RoHS3 compliant.

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	Nexperia USA Inc.
Current	6.8A (Ta)
Drain to Source Voltage (Vdss)	20 V
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	20.2 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds	1240 pF @ 10 V
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Power Dissipation (Max)	6.94W (Tc)
Rds On (Max) @ Id, Vgs	20mOhm
Storage Temperature	°C ~ °C
Supplier Device Package	TO-236AB
Supplier Package	TO-236AB
Tape & Reel	No
Technology	Trench MOSFET
Vgs (Max)	±12V
Vgs(th) (Max) @ Id	900mV @ 250µA
