| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50,000 pcs
|
50000 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request | |
|
2,020 pcs
|
2020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

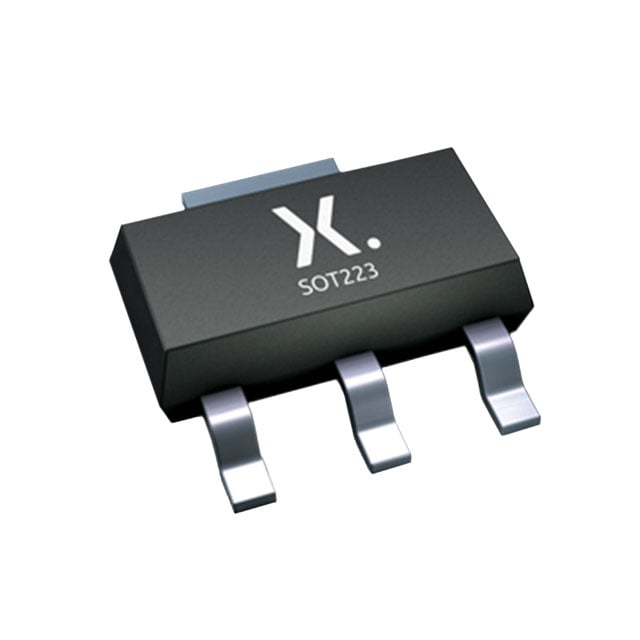

The Nexperia PMT280ENEAX is an N-channel enhancement mode Field-Effect Transistor (FET) utilizing Trench MOSFET technology. It is housed in a medium power SOT-223 (SC-73) surface-mounted device (SMD) plastic package.
This MOSFET boasts a drain-source voltage rating of 100V and a continuous drain current of 1.5A at 25°C ambient temperature. The drain-source on-state resistance is a maximum of 385mΩ at 1.5A and 10V gate-source voltage. It is logic level compatible and offers very fast switching capabilities.
Key electrical characteristics include a maximum gate-source voltage of ±20V, a gate threshold voltage of 2.7V at 250µA, and input capacitance of 195pF at 50V. The device also features electrostatic discharge (ESD) protection greater than 2 kV HBM.
Applications for the PMT280ENEAX include relay drivers, LED backlight drivers, low-side load switches, and general switching circuits. The component is AEC-Q101 qualified, indicating suitability for automotive applications. It is mounted using a surface mount technique and operates within a temperature range of -55°C to 150°C (TJ).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.27 | $2.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage rating for the PMT280ENEAX is 100V.
The maximum continuous drain current for the PMT280ENEAX is 1.5A at 25°C ambient temperature.
The on-state resistance is a maximum of 385mΩ at 1.5A drain current and 10V gate-source voltage.
The PMT280ENEAX is supplied in a SOT-223 package.
The operating temperature range for the PMT280ENEAX is -55°C to 150°C.
