PMT-24V50W1AH
Delta Electronics
The Delta Electronics PMT-24V50W1AH is an enclosed AC/DC converter with a 50W power rating and 24V output. It features chassis mount capability.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

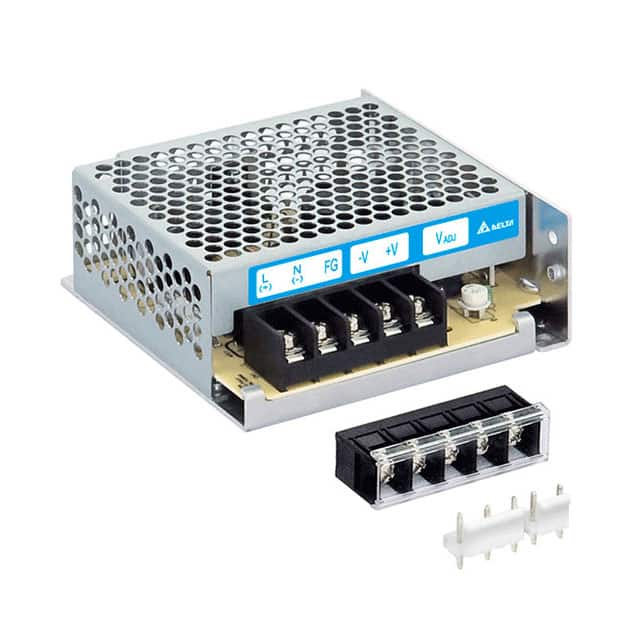

This Delta Electronics PMT-24V50W1AG is an enclosed AC/DC converter with a power rating of 50W and an output voltage of 24V. It is designed for chassis mounting and features adjustable output and universal input.
The converter operates with an efficiency of 86% and provides a 3 kV isolation voltage. Its dimensions are 98.0mm x 98.0mm x 38.0mm, making it suitable for various ITE (Commercial) applications. The operating temperature range is -10°C to 70°C with derating.
Key specifications include a current rating of 2.09A, a single output, and compliance with multiple approval agencies such as CB, CE, CCC, cURus, and TUV. The product is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
The output voltage is 24V and the output current is 2.09A.
The power rating is 50W.
The efficiency is 86%.
The operating temperature range is -10°C to 70°C with derating.
It uses chassis mount.
The dimensions are 98.0mm (length) x 98.0mm (width) x 38.0mm (height).
It is approved by CB, CE, CCC, cURus, and TUV.
