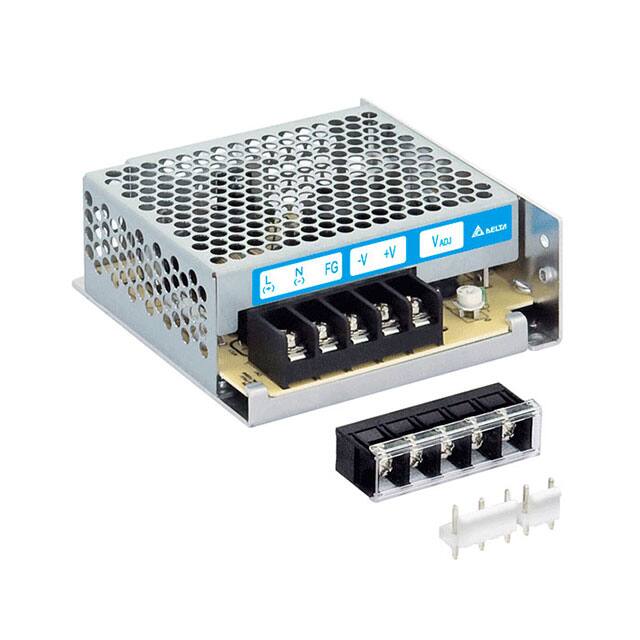

This Delta Electronics PMT-24V50W1AH is an enclosed AC/DC power supply converter designed for ITE (Commercial) applications. It provides a 24V output with a 50W power rating and a current of 2.09A.
The converter features adjustable output and universal input, operating efficiently at 86%. It is designed for chassis mounting and has dimensions of 98.0mm x 98.0mm x 38.0mm. The operating temperature range is -10°C to 70°C with derating.
Key electrical specifications include a 3kV voltage rating and a single output. The unit is certified by CB, CE, CCC, cURus, and TUV approval agencies. It is RoHS3 compliant and has an MSL rating of 1.
The power output is 50W.
The voltage rating is 3 kV.
It supports chassis mounting.
The operating temperature range is -10°C to 70°C (With Derating).
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
