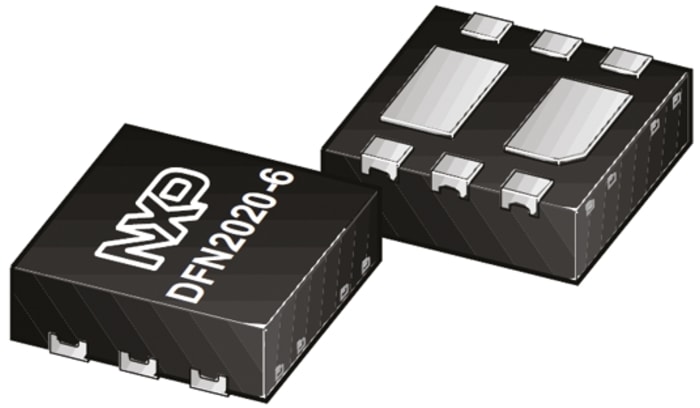

PMPB11EN The Nexperia PMPB11EN is an N-Channel MOSFET designed for various applications. It offers a continuous drain current of 9A and a drain-source voltage of 30V.
Mfr Part #:

PMPB11EN

Available from 1 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
The Nexperia PMPB11EN is an N-Channel MOSFET designed for various applications. It offers a continuous drain current of 9A and a drain-source voltage of 30V.
✓ Total Stock: 7,701 pcs
$ Price Range: $0.55

PMPB11EN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
7,701 pcs
On Request
7701 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PMPB11EN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
Failure Rate
Height
Length
Storage Temperature
Tape & Reel
View Similar Products (0)

PMPB11EN Description

Short technical summary and product information.

This N-Channel MOSFET from Nexperia, part number PMPB11EN, is suitable for applications requiring robust power handling. It features a maximum continuous drain current of 9A and a maximum drain-source voltage of 30V.



The device operates within a temperature range of -55°C to 150°C, with a maximum power dissipation of 12.5W. Its DFN package with surface mount type ensures efficient integration into electronic designs.



Key electrical characteristics include a maximum drain-source resistance of 14.5mΩ and a typical gate charge of 13.7nC at Vgs. The enhancement mode channel provides reliable switching performance.

PMPB11EN Quick Information

Product Type: N-Channel MOSFET
Series: PMPB11EN
Canonical Name: Nexperia PMPB11EN Type N-Channel MOSFET
Subcategory: N-Channel MOSFET

PMPB11EN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PMPB11EN Estimated Pricing

Qty Low High
1+ $0.55 $0.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

PMPB11EN Features

  • N-Channel MOSFET with 9A continuous drain current.
  • Maximum drain-source voltage of 30V.
  • Surface mount DFN package.
  • Wide operating temperature range: -55°C to 150°C.
  • Low Rds(on) of 14.5mΩ.

PMPB11EN Applications

  • Suitable for power switching applications.
  • Ideal for general purpose MOSFET needs.
  • Used in compact electronic designs.
  • Designed for high-temperature environments.

PMPB11EN FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum continuous drain current for the PMPB11EN MOSFET?

The maximum continuous drain current is 9A.

What is the maximum drain-source voltage for this N-Channel MOSFET?

The maximum drain-source voltage is 30V.

What is the package type and mounting for the PMPB11EN?

It is a DFN package designed for surface mounting.

What is the operating temperature range of the PMPB11EN?

The operating temperature range is from -55°C to 150°C.

What is the maximum power dissipation of the PMPB11EN?

The maximum power dissipation is 12.5W.
