PMH600UNEH The Nexperia PMH600UNEH is an N-channel Trench MOSFET designed for high-speed switching applications. It features a 20V drain-source voltage and 800mA continuous drain current.
Mfr Part #:

PMH600UNEH

Available from 2 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
The Nexperia PMH600UNEH is an N-channel Trench MOSFET designed for high-speed switching applications. It features a 20V drain-source voltage and 800mA continuous drain current.
✓ Total Stock: 461,511 pcs
$ Price Range: $2.27

PMH600UNEH Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
450,491 pcs
On Request
450491 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
11,020 pcs
On Request
11020 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PMH600UNEH Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

PMH600UNEH Description

Short technical summary and product information.

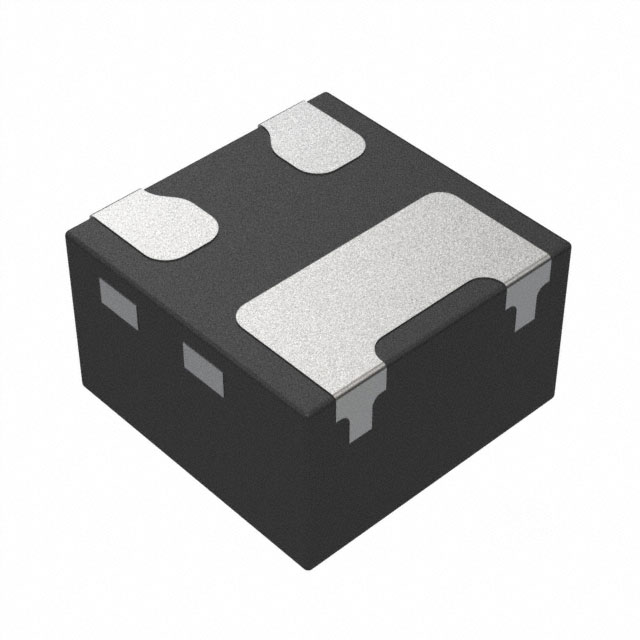

The Nexperia PMH600UNEH is an N-channel enhancement mode MOSFET utilizing Trench MOSFET technology. It is housed in a leadless ultra-small DFN0606-3 package, measuring 0.62 x 0.62 x 0.37 mm.



This MOSFET offers a drain-source voltage of 20V and a continuous drain current of 800mA at 25°C ambient temperature. Key electrical characteristics include a low threshold voltage and a drain-source on-state resistance of 620mΩ maximum at 600mA and 4.5V gate-source voltage. It also features a gate charge of 0.31 nC maximum at 4.5V gate-source voltage.



Applications for the PMH600UNEH include relay drivers, high-speed line drivers, low-side load switches, and general switching circuits. The device provides ElectroStatic Discharge (ESD) protection greater than 1 kV HBM. Its compact size and performance make it suitable for space-constrained designs.



The operating temperature range is -55°C to 150°C (TJ), with a maximum power dissipation of 370mW (Ta) or 2.2W (Tc). The package is Surface Mount, specifically DFN0606-3 (SOT8001).

PMH600UNEH Quick Information

Product Type: MOSFET
Canonical Name: Nexperia PMH600UNEH N-Channel Trench MOSFET
Subcategory: N-Channel

PMH600UNEH Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PMH600UNEH Estimated Pricing

Qty Low High
1+ $2.27 $2.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

PMH600UNEH Features

  • N-channel Trench MOSFET technology.
  • 20V drain-source voltage rating.
  • 800mA continuous drain current.
  • Ultra-small DFN0606-3 package.
  • ESD protection > 1 kV HBM.

PMH600UNEH Applications

  • Suitable for relay driver circuits.
  • Ideal for high-speed line drivers.
  • Used in low-side load switches.
  • Applicable for general switching circuits.

PMH600UNEH FAQs

5 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage of the PMH600UNEH MOSFET?

The drain-source voltage (Vds) is 20V.

What is the continuous drain current for the PMH600UNEH at 25°C?

The continuous drain current (Id) is 800mA at 25°C ambient temperature.

What is the on-state resistance (RDSon) of the PMH600UNEH?

The maximum on-state resistance is 620mΩ at 600mA drain current and 4.5V gate-source voltage.

What package type is the PMH600UNEH MOSFET supplied in?

The PMH600UNEH is supplied in a DFN0606-3 surface mount package.

What is the operating temperature range for the PMH600UNEH?

The operating temperature range is -55°C to 150°C.
