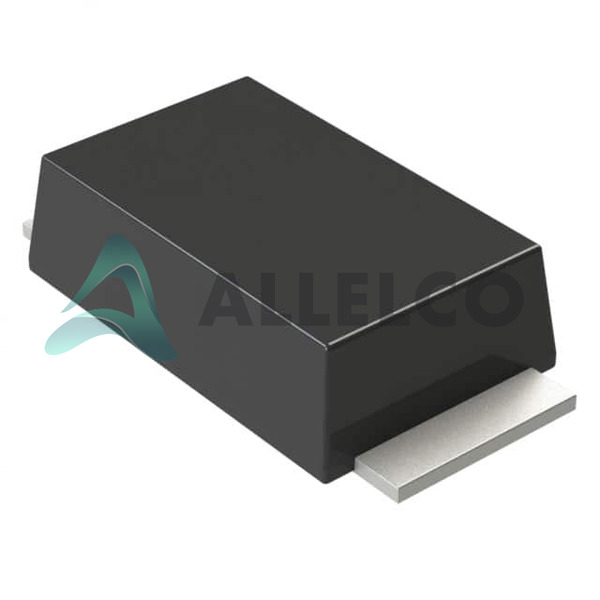

PMEG6010EP The PMEG6010EP from Nexperia USA Inc. is a Schottky diode with a 60V reverse voltage rating and 1A average rectified current. It is available in a surface mount SOD-128 package.
Mfr Part #:

PMEG6010EP

Available from 2 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
The PMEG6010EP from Nexperia USA Inc. is a Schottky diode with a 60V reverse voltage rating and 1A average rectified current. It is available in a surface mount SOD-128 package.
✓ Total Stock: 36,018 pcs
$ Price Range: $0.40

PMEG6010EP Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
36,000 pcs
On Request
36000 pcs On Request 1 On Request On Request 12+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
18 pcs
On Request
18 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PMEG6010EP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Mounting Type
Operating Temperature
View Similar Products (0)

PMEG6010EP Description

Short technical summary and product information.

The PMEG6010EP is a Schottky diode manufactured by Nexperia USA Inc. This component is designed for general-purpose rectification applications, offering a maximum DC reverse voltage of 60V and an average rectified current of 1A. Its forward voltage drop is a maximum of 530mV at 1A.



The diode features a junction temperature rating of up to 150°C and a capacitance of 120pF at 1V and 1MHz. The reverse leakage current is specified as 60µA at 60V.



This device is supplied in a surface mount SOD-128 package, suitable for automated assembly processes. The packaging is tape and reel (TR) for efficient handling and placement.



Environmental compliance includes RoHS3 compliance, an MSL rating of 1, and REACH unaffected status. These attributes make the PMEG6010EP suitable for various electronic designs where reliable rectification and surface mount capabilities are required.

PMEG6010EP Quick Information

Product Type: Schottky Diode
Canonical Name: PMEG6010EP Schottky Diode
Subcategory: Rectifier

PMEG6010EP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PMEG6010EP Estimated Pricing

Qty Low High
1+ $0.40 $0.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

PMEG6010EP Features

  • 60V maximum reverse voltage rating.
  • 1A average rectified current capacity.
  • Low 530mV forward voltage at 1A.
  • Surface mount SOD-128 package.
  • RoHS3 compliant.

PMEG6010EP Applications

  • Suitable for general rectification.
  • Ideal for power supply circuits.
  • Used in signal processing.
  • Compact design applications.

PMEG6010EP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the PMEG6010EP?

60V.

What is the average rectified current rating?

1A.

What is the forward voltage at 1A?

530mV.

What is the package type?

SOD-128.

What is the junction capacitance?

120pF at 1V, 1MHz.

What is the reverse leakage current at 60V?

60µA.

What is the maximum operating junction temperature?

150°C.
