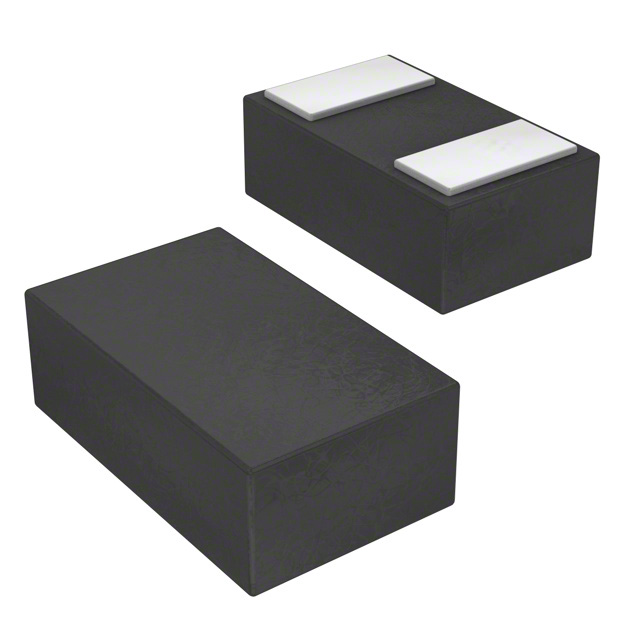

The PMEG4010ESBYL is a planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier from Nexperia. It integrates a guard ring for stress protection and is housed in a leadless ultra-small DSN1006-2 (SOD993) surface-mount package.
Key electrical specifications include an average forward current of 1A (square wave, δ=0.5, f=20kHz, Tsp≤140°C) and a maximum reverse voltage of 40V. The forward voltage is typically 510mV and maximum 610mV at 1A and 25°C. Reverse current is typically 13µA and maximum 40µA at 40V and 25°C. The device offers a fast reverse recovery time of 2.9ns and a junction capacitance of 22pF at 10V.
Designed for low voltage rectification, high efficiency DC-to-DC conversion, switch mode power supplies, and ultra high-speed switching, it is also suitable for LED backlight applications in mobile devices. The package measures 1.0x0.6x0.27mm with a height of 270µm. Power dissipation is 0.525W on a standard PCB and 1.78W on a ceramic PCB. Operating junction temperature range is -55°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.46 | $0.46 |
| 10+ | $0.28 | $0.28 |
| 100+ | $0.18 | $0.18 |
| 500+ | $0.13 | $0.13 |
| 1,000+ | $0.12 | $0.12 |
| 2,000+ | $0.10 | $0.10 |
| 5,000+ | $0.09 | $0.09 |
| 10,000+ | $0.05 | $0.05 |
| 20,000+ | $0.05 | $0.05 |
| 30,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage is 40V.
The average forward current is 1A (square wave, δ=0.5, f=20kHz, Tsp≤140°C).
Typical forward voltage is 510 mV, maximum 610 mV at IF=1A and Tj=25°C.
The reverse recovery time is 2.9 ns.
It comes in a DSN1006-2 (SOD993) leadless surface-mount package with dimensions 1.0x0.6x0.27 mm.
Typical reverse current is 13 µA, maximum 40 µA at VR=40V and Tj=25°C.
The junction operating temperature range is -55°C to 150°C.
