Mfr Part #:

PMCPB5530X,115

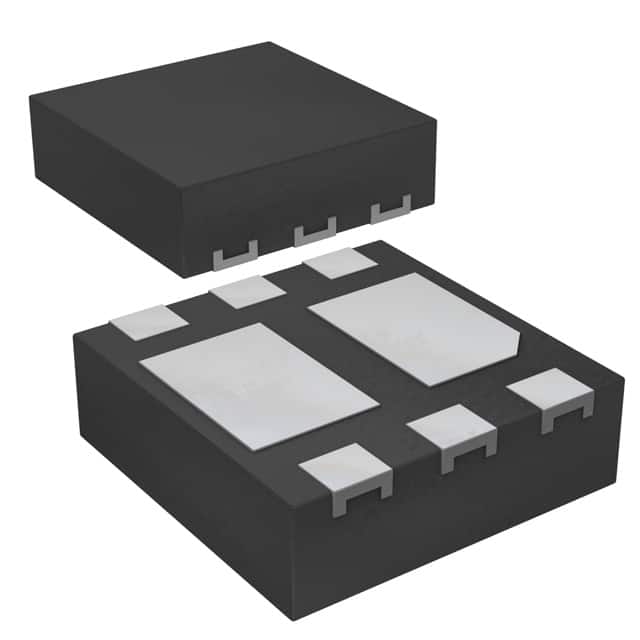

Name: PMCPB5530X,115
Brand: Nexperia USA Inc.
SKU: PMCPB5530X,115

Mfr Name: Nexperia USA Inc.

Description:

MOSFET N/P-CH 20V 6HUSON

Stock on Request

PMCPB5530X,115 Description

Short technical summary and product information.

MOSFET N/P-CH 20V 6HUSON

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Arrays
Manufacturer Name	Nexperia USA Inc.
Configuration	N and P-Channel
Current	4A (Ta), 3.4A (Ta)
Drain to Source Voltage (Vdss)	20V
Gate Charge (Qg) (Max) @ Vgs	21.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	660pF @ 10V
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Power	490mW
Rds On (Max) @ Id, Vgs	34mOhm @ 3A, 4.5V
Supplier Device Package	6-HUSON (2x2)
Vgs(th) (Max) @ Id	900mV @ 250µA
